LINEA PER PRODUZIONE E PANNELLO SANDWICH TETTO A PARETE codice prodotto: 33273
scorri le foto orizzontalmente
Affrettati! Questo prodotto è già stato visto 144 volte! Non fartelo scappare!
Dati tecnici:
Linea usata per produzione pannello sandwich tetto e pareteSABILMEC SRL page 1
GENERAL SPECIFICATIONS:
- Production speed 0 ÷ 6 m/1’
- Production capacity 600.000 m2/year (n.8 hours/day)
- Width of Panel 1.000 mm
- Thickness of Panel 30 – 120/150 mm
- Thickness of the steel coils 0,35 / 0,50 mm
- Steel coils PPGI (PUF compatible) 1.250 mm x 8 Ton
- Steel coils PPGI (PUF compatible) 1.060 mm x 8 Ton
- Steel coils PPGI (PUF compatible) 1.170 mm x 8 ton
- Max panel length 12 m
- Min panel length 2,5 m
- PU foam reference density 40 kg/m3
- PU Foam components Isocianate + Poliole
- Line size 100 x 20 m
- Installed elec. power 250 kW
Compressed air need 12 bar x 2.000 lt
A.c. Electrical supply 3x400 Volt, 50 Hz +- 5% , Ground + Neutral
Products (as showed in the drawings):
Roof panel with n.3 and also with n.5 trapezoidal ribs
Wall panel and cold room panel by standard male-female joint
Wall panel by hidden bolt joint
SABILMEC SRL page 2
LIST OF MACHINES

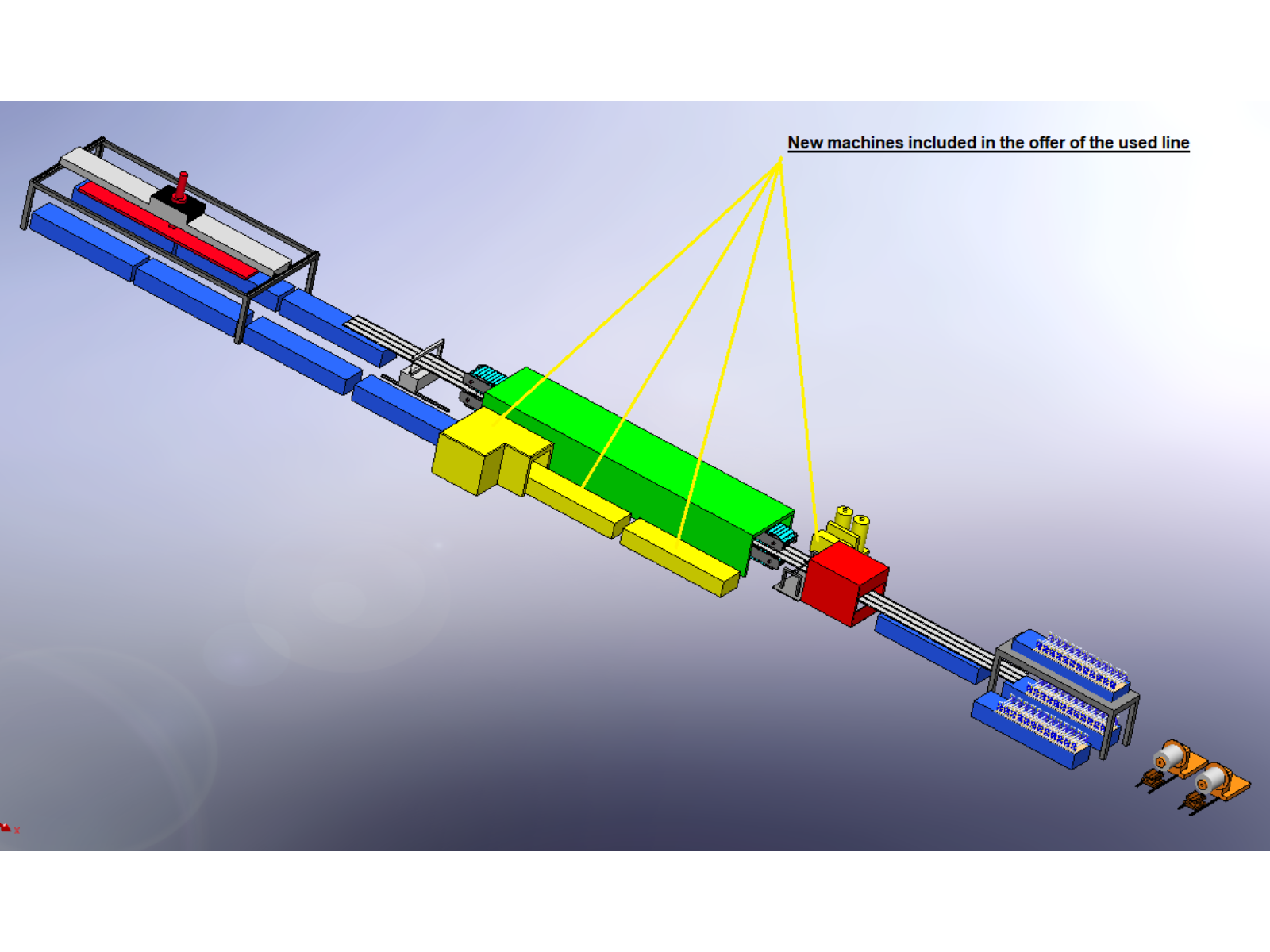

(manufactured in Italy, used line but with new added hp foaming machine-F)
A

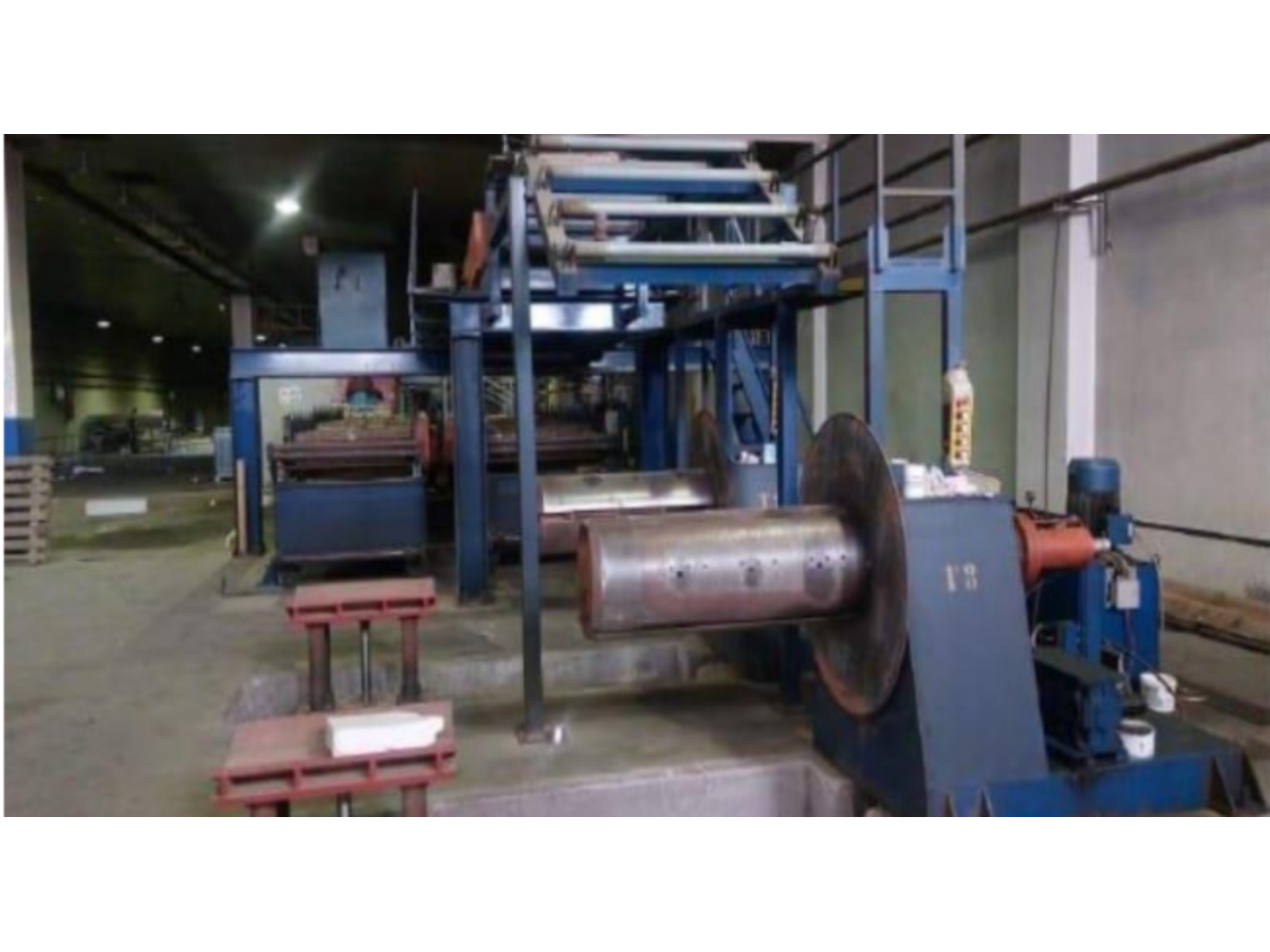

N. 2 DECOILERS 1250 mm x 8 Ton (n.1 upper side and n.1 lower side)
N. 2 COILS CARS 8 ton
N. 2 AUTOMATIC LOOPS CONTROL FOR STRIP FEEDING
N. 1 SUPPORTING FRAME WITH IDLE ROLLS BENCH
N. 1 SUPPORTING FRAME FOR upper ROLL-FORMING MACHINE

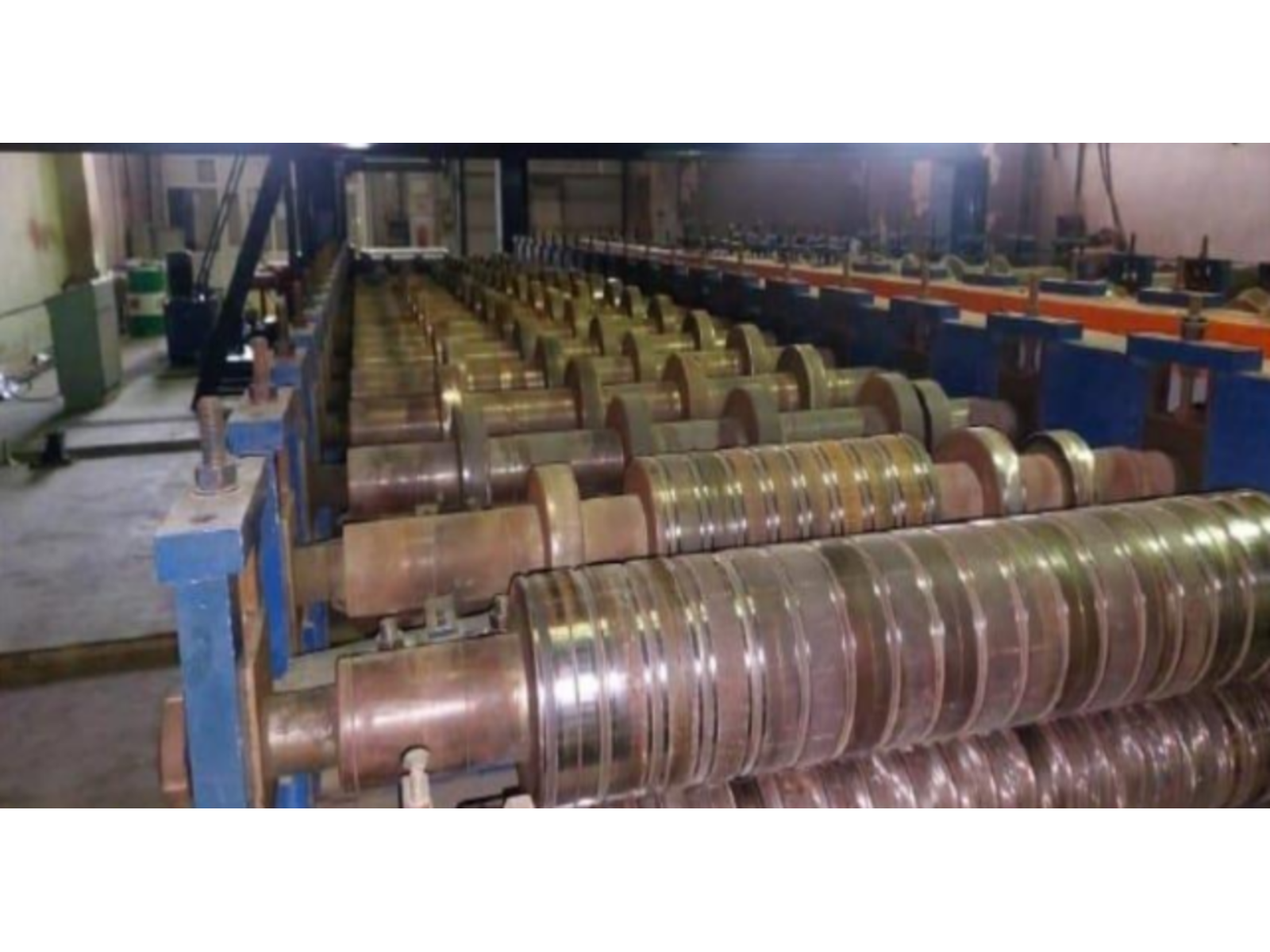

N. 1 FIXED ROLL-FORMING MACHINES (upper floor) WITH SET OF
FORMING ROLLS ASSEMBLED – n.12 STATIONS FOR
MICROCORRUGATED PROFILE (upper face for wall and roof panel)
N. 1 MOVABLE ROLL-FORMING MACHINES WITH SET OF
FORMING ROLLS ASSEMBLED – n.20 STATIONS FOR TRAPEZOIDAL
PROFILE PROFILE (lower face for roof panel with 3 and 5 ribs)
N. 1 MOVABLE ROLL-FORMING MACHINES WITH SET OF
FORMING ROLLS ASSEMBLED – n.20 STATIONS FOR MICROCORRUGATED
PROFILE (lower face for wall panel for standard and secret bolt joints)
N. 1 DRIVING GROUP WITH MOTORIZED WHEELS AND FLOOR
RAILS FOR QUICK CHANGE OF THE PRODUCTION (lower floor)
N. 1 PRE-HEATING OVEN WITH AUTOMATIC INFRARED LAMPS
B
N. 2 PANEL SIDE GROUPS FOR PAPER OR RUBBER TAPE
DECOILING
N. 1 DISTRIBUTING SYSTEM for the foaming machine (see point “F”)

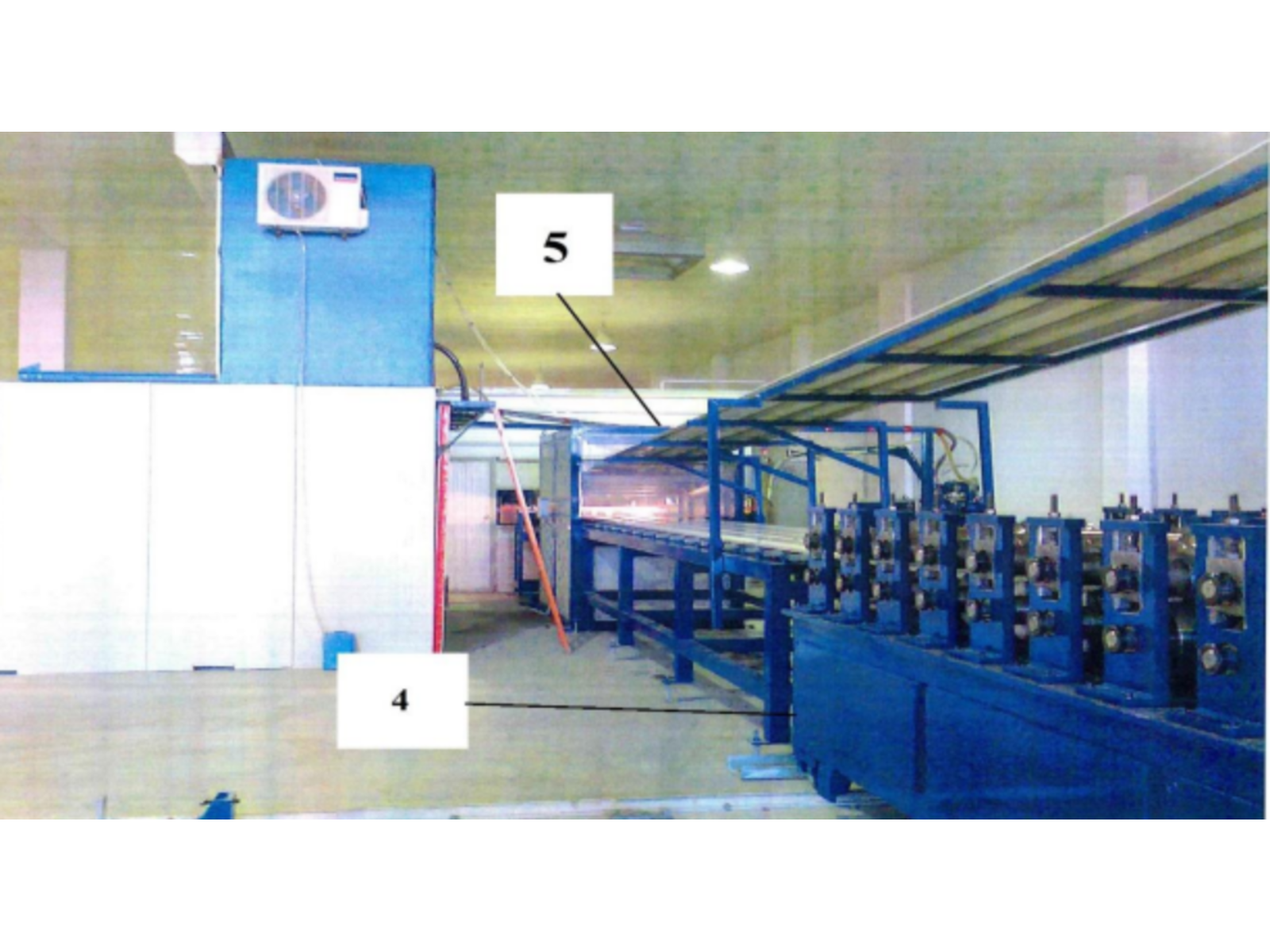

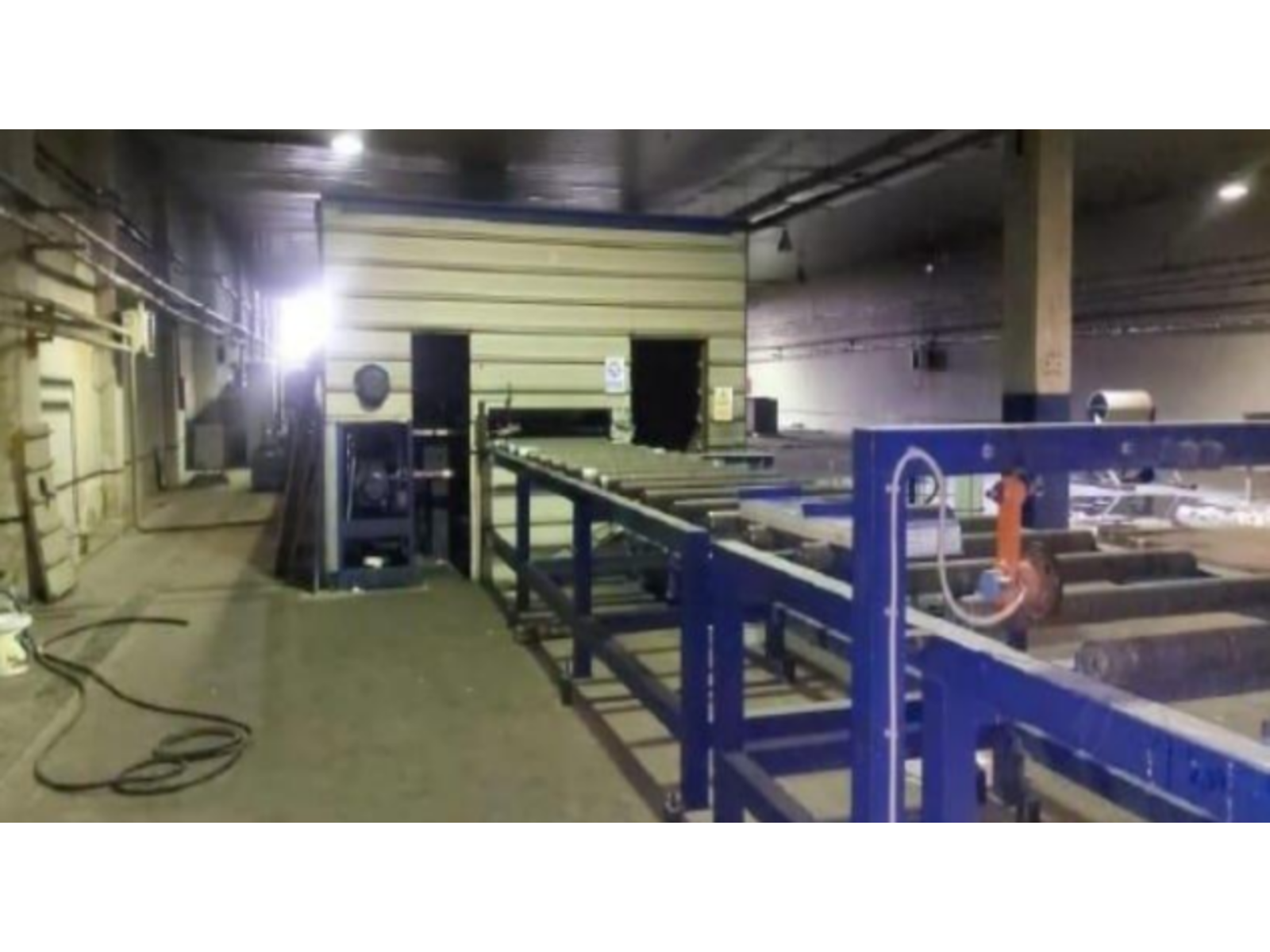

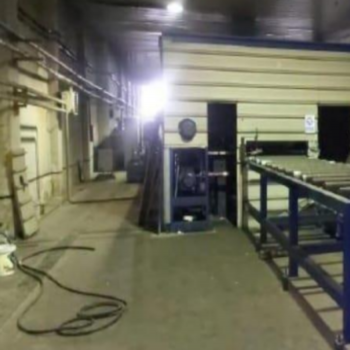

N. 1 CATERPILLAR AND CONDITIONING TUNNEL (L= 20 meter)
(Insulated cover structure and heated air ventilating system included)
N. 8 SETS OF CATERPILLAR SIDE CLOSING OF PANEL
C
N. 1 FLYING SAW MACHINE
N.1 AUTOMATIC TILTING SYSTEM (180°) FOR ROOF PANELS

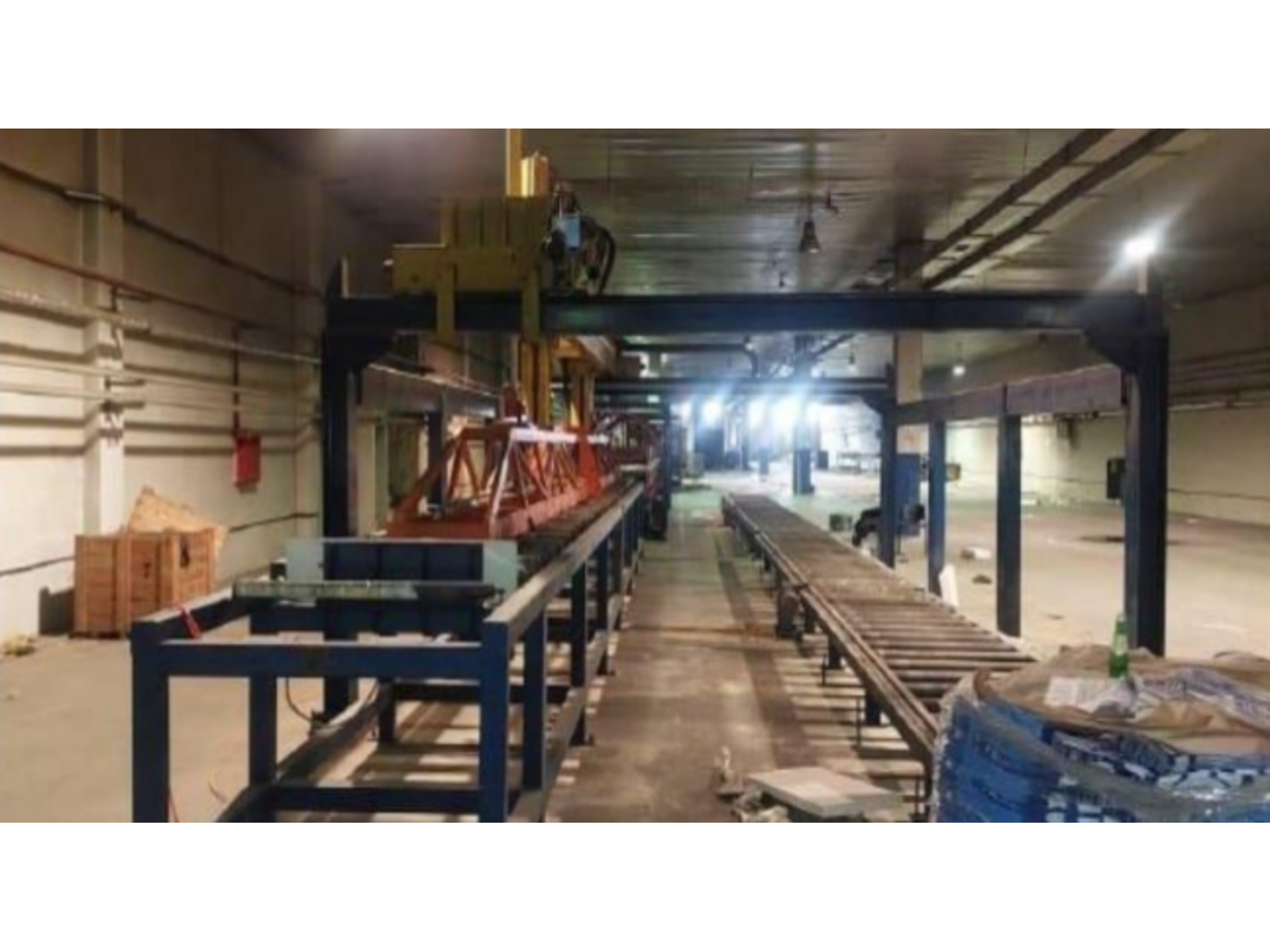

N.1 AUTOMATIC DISCHARGING AND PACKING SYSTEM (MAX
LENGTH = 12 m)
D N. 1 ELECTRIC SYSTEM
E N. 1 HYDRAULICAL SYSTEM (hydraulic oil excluded)
F
N. 1 High pressure foam injection machine - COSMEC
(ew machine from Italy - system for n.2 chemical components Iso+Pol preformulated)
N. 1 Gasoline Burner to produce hot air for heating system (new)
N.1 Air compressor 2.000 lt – 12 bar (new)
N.1 Water cooling system for chemical components refrigeration for the
injection machine (new)
N1. Set of n.8 adhesive papers coils for different thickness of panels right and
left sides closing (consumables items only for the start up of the line)
N.1 Set of n.4 circular cutting steel blades (consumables items only for start
