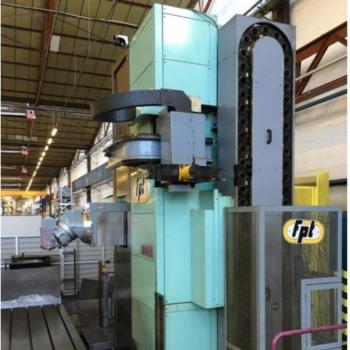

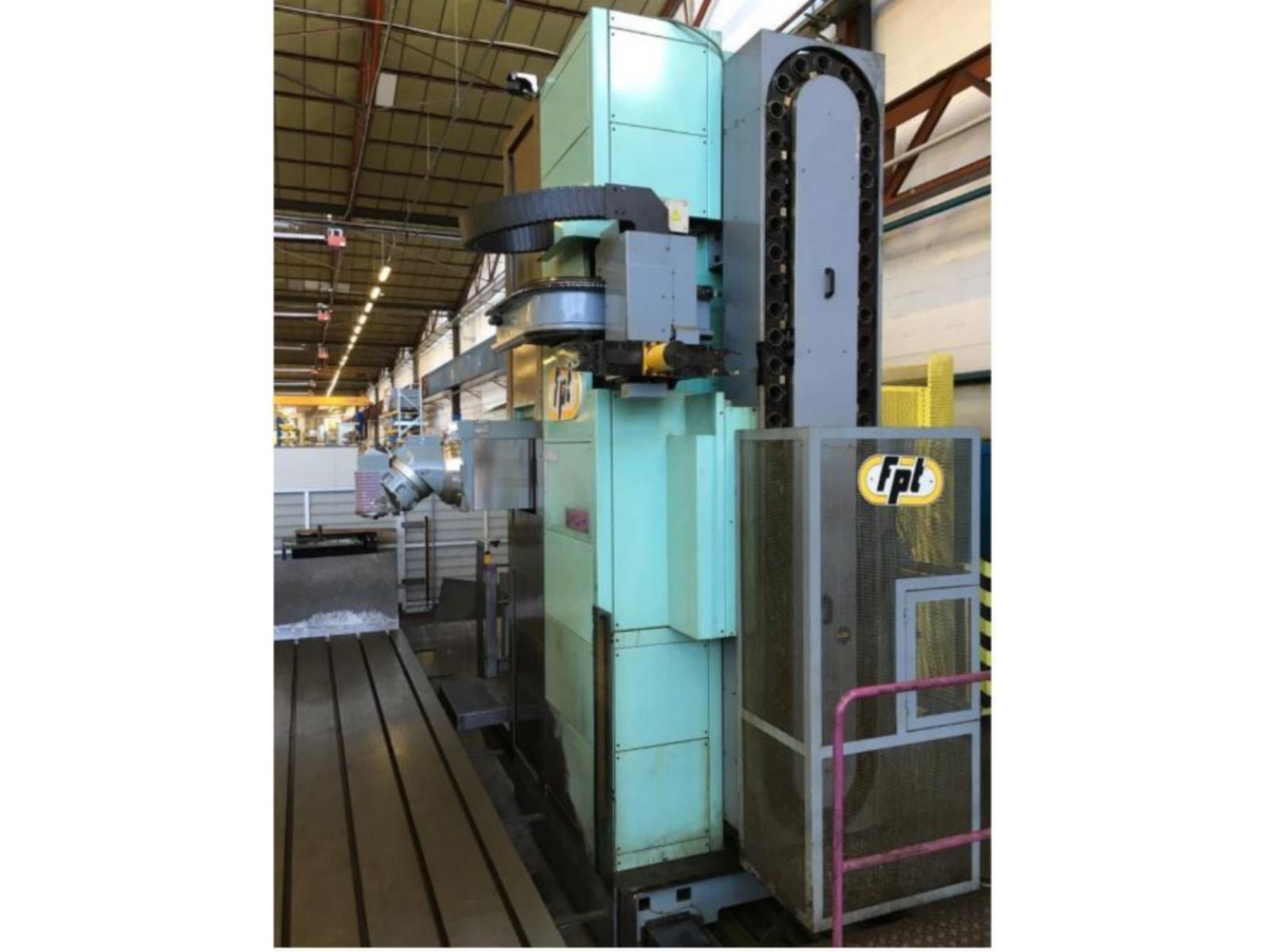

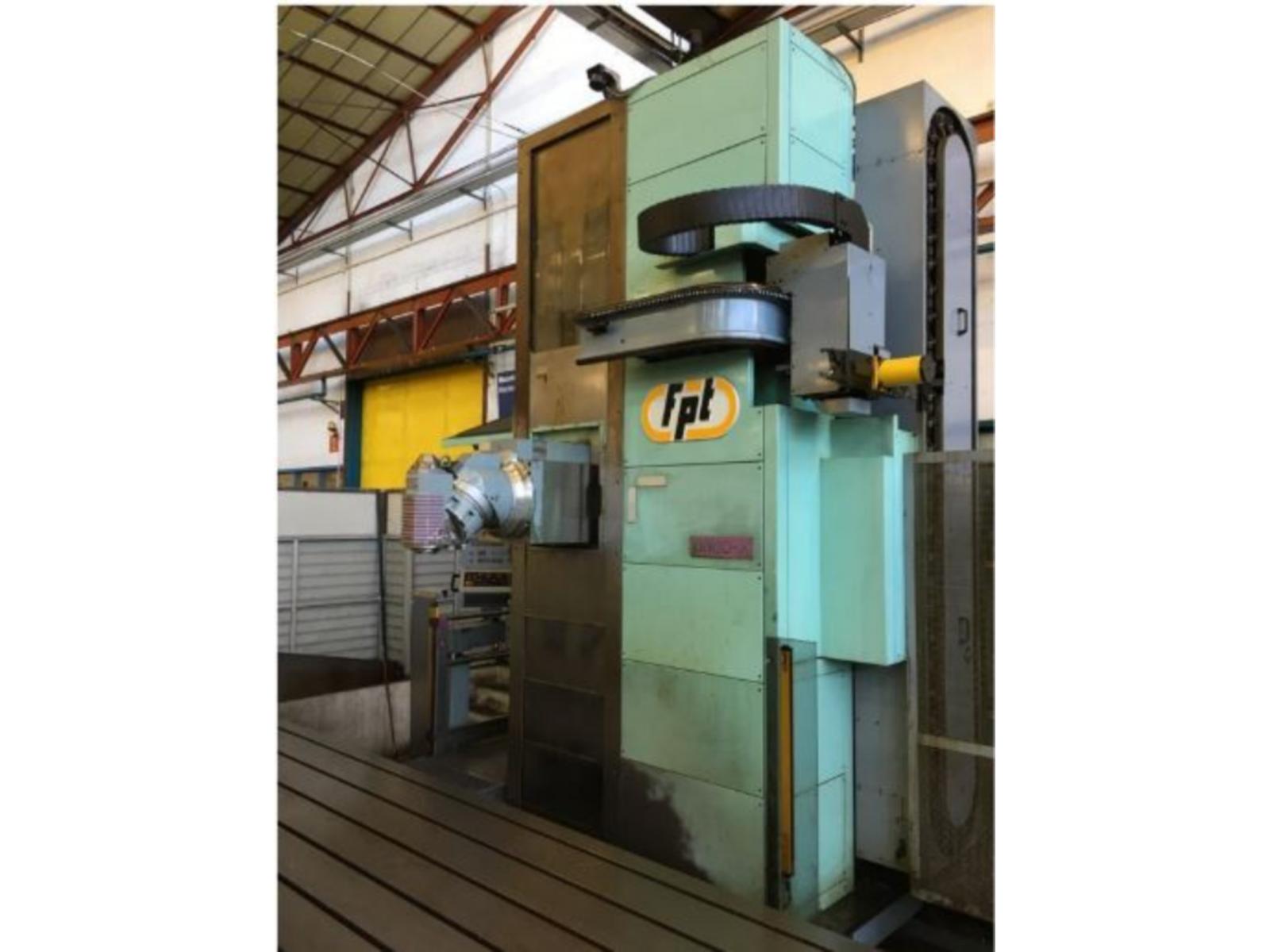

fresatrice HYDROSTATIC BED FLOR MILLING MACHINE FPT SIRIO M160 codice prodotto: 27940

fresatrice HYDROSTATIC BED FLOR MILLING  MACHINE  FPT SIRIO M160
fresatrice HYDROSTATIC BED FLOR MILLING  MACHINE  FPT SIRIO M160
fresatrice HYDROSTATIC BED FLOR MILLING  MACHINE  FPT SIRIO M160
 scorri le foto orizzontalmente
Per informazioni commerciali, scrivi su WhatsApp a Massimo Benetta:
cell. +393383403900

Affrettati! Questo prodotto è già stato visto 1362 volte! Non fartelo scappare!

Dati tecnici:

Building year 2000

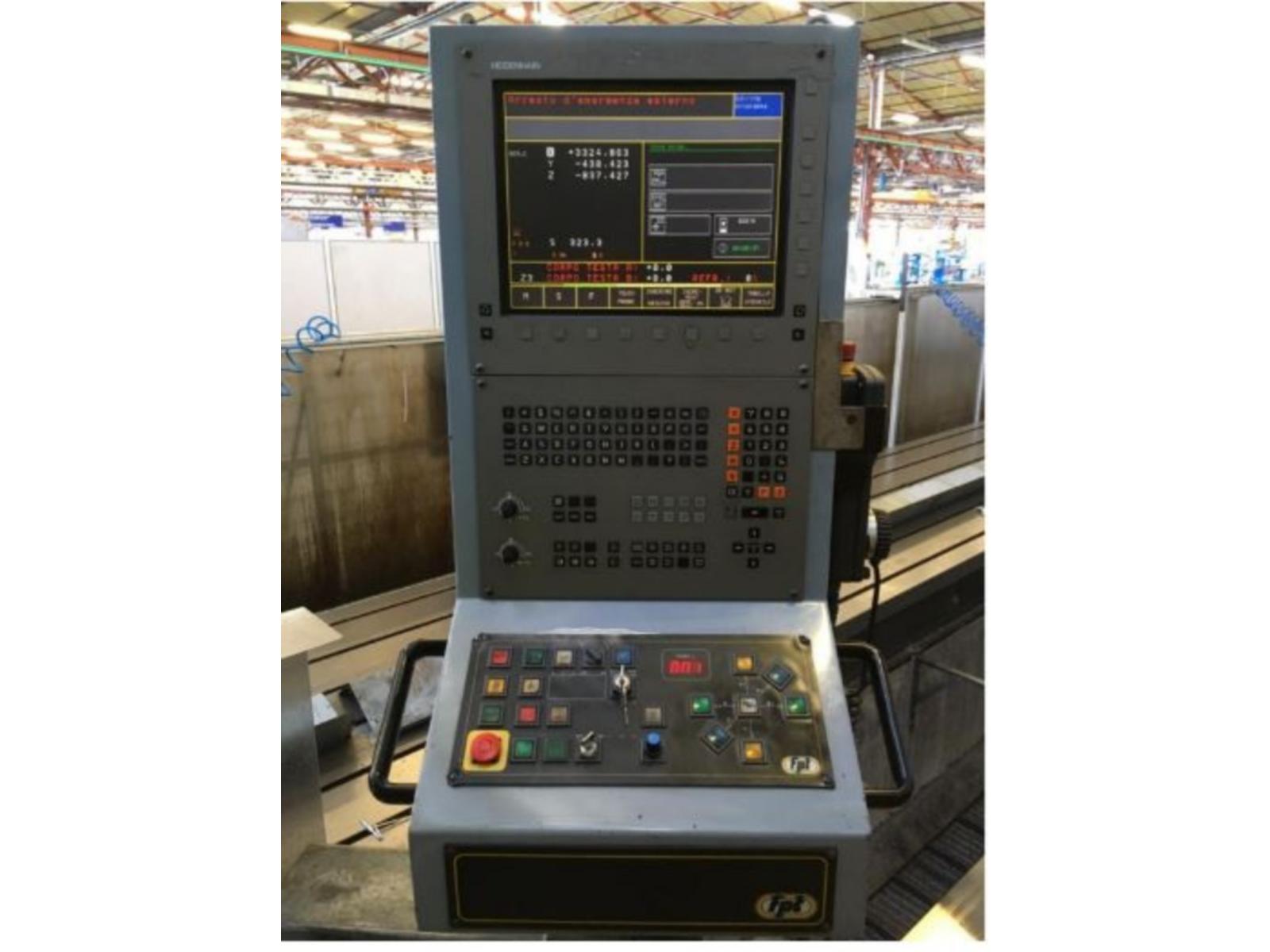

CNC TNC430
Drives and motors – Azionamenti e motori – Antribe und
motoren
SIEMENS DIGITAL
Travels - Corse - Verfahrwege - Courses mm Inch
Longitudinal - Longitudinale - Längs 16000 630
Cross travel - Corsa Trasversale - Quer 1250 49,2
Vertical travel - Corsa Verticale - Vertikal 2000 78,7
Feeds - Avanzamenti - Vorschübe - Avances mm/min Ipm
Rapid feed- Avanzamento rapido – Rapid Vorschübe 15000 590
Working area - Area di lavoro- Arbeitsbereich mm Inch
Working plane dimension - Dimensioni piano di lavoro –
Aabmessungen ArbeitTisch
17000x1500 669x59
Spindle - Mandrino - Spindel - Broche
KW Hp
AC motor power (S1) - Potenza motore AC (S1)
AC Motorantriebsleistung (S1)
22 29,5
Spindle taper - Cono mandrino - Spindelaufnahme IS050 din69871
Spindle rotations - Giri mandrino - Spindeldrehzahl Rpm 4000
Max. spindle torque - Coppia massima mandrino Nm Lbf.ft
S1 1120 10798
Milling Head – Testa di fresatura - FresaKopf
Automatic universal birotative Head 144x144 position – testa universale bitorativa
automatica 144x144 posizioni 22KW (4000Rpm
ATC – Cambio utensile – Werzeugwechsel
Tool places – posti utensile - Werzeugplaze 60
Tool change type – tipo di cambio utensili Double arm – braccio
doppio scambio
OPTIONS
Semi-automatic head changer – cambio teste semiautomatico.
Three working areas programmable (full course, left side or right side)
Internal and external tool coolant with flowrate adjust– lubrorefrigerante interno esterno
utensile con regolazione portata.
Paper filter – Filtro a carta
Chips conveyor – Trasportatore di truccioli – Späneförderer
