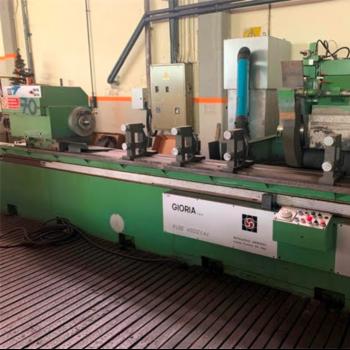

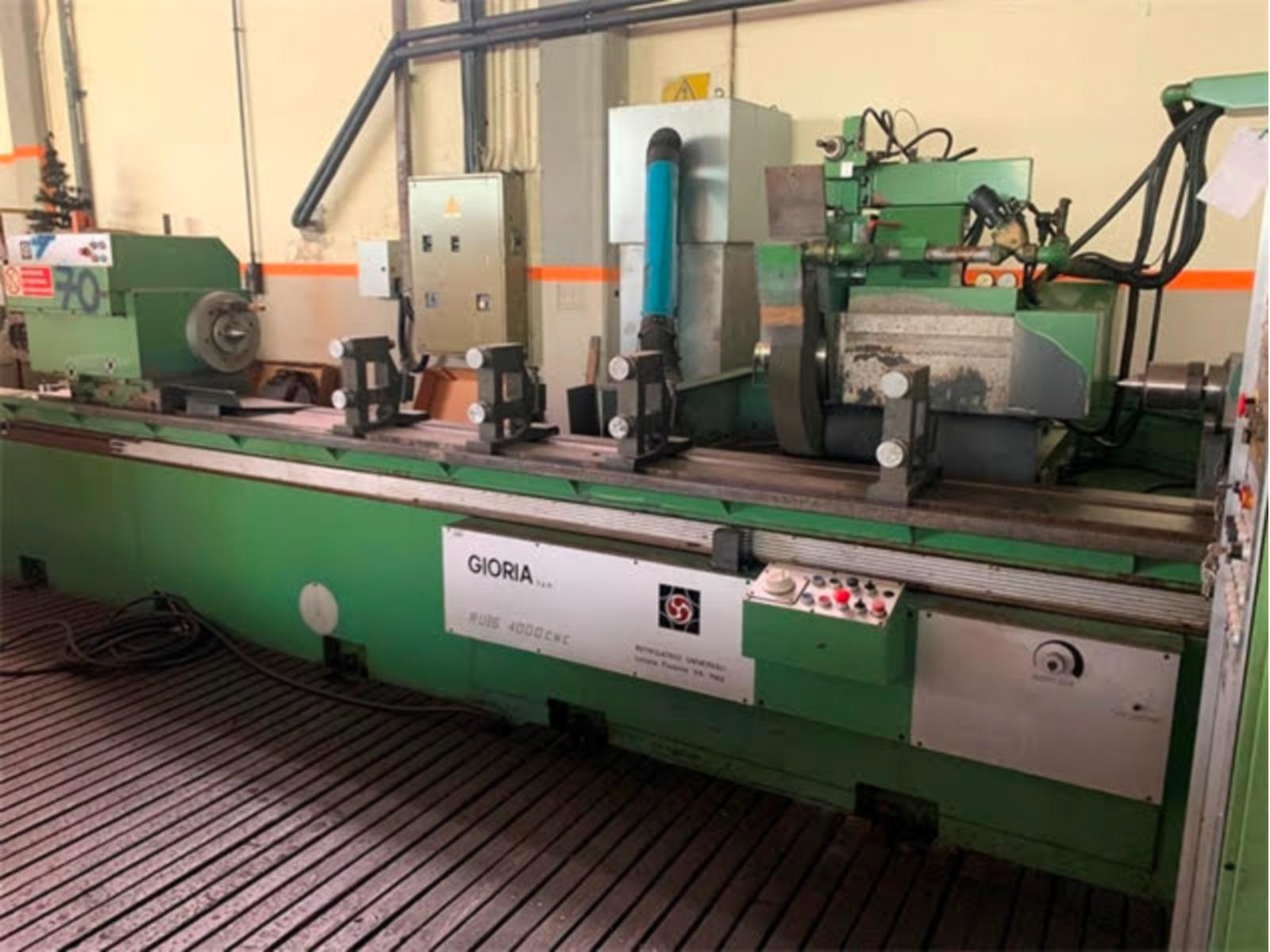

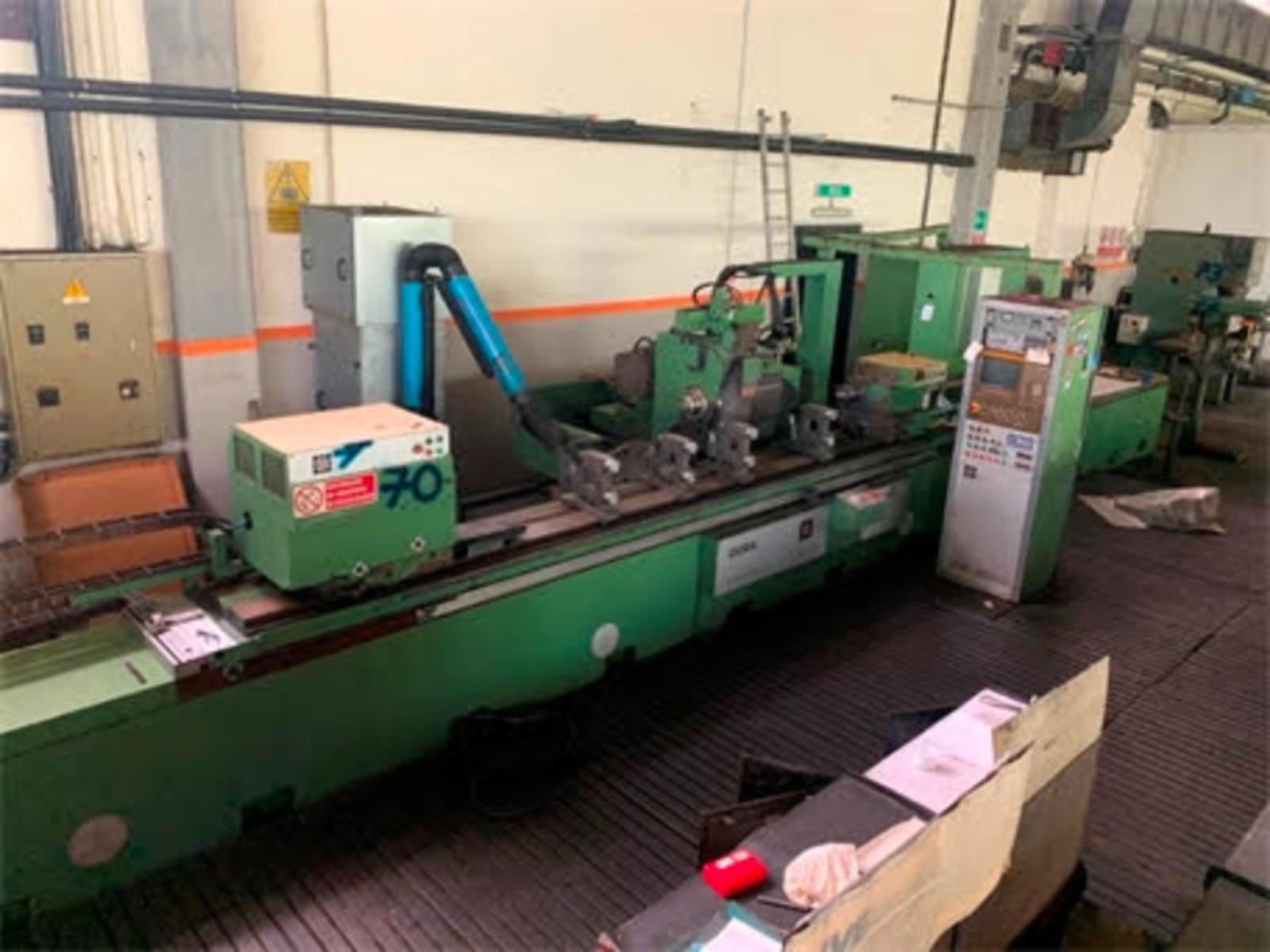

RETTIFICA GIORIA RU/S 4000 CNC codice prodotto: 25758
scorri le foto orizzontalmente
Affrettati! Questo prodotto è già stato visto 3429 volte! Non fartelo scappare!
Dati tecnici:
ENGLISH BELOWRETTIFICA GIORIA RU/S 4000 CNC

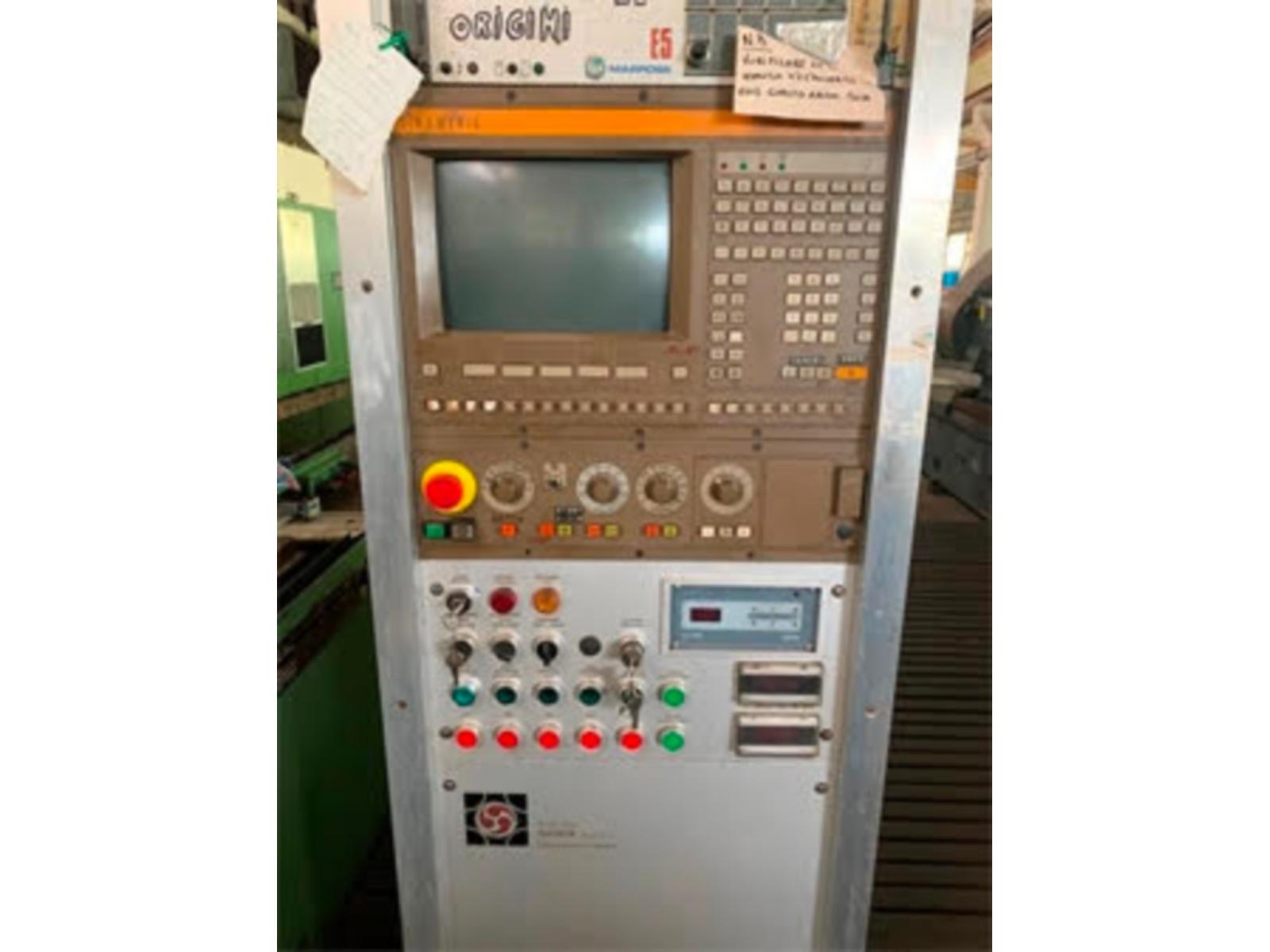

Controllo numerico Siemens Sinumerik 820T
Diametro max rotante mm 595
Diametro max rettificabile mm 590
Lunghezza max rettificabile mm 4000
Peso statico max ammesso sulle punte Kg 3000
Peso statico ammesso del pezzo serrato a sbalzo sull'autocentrante (max sporgenza mm 250) Kg 600

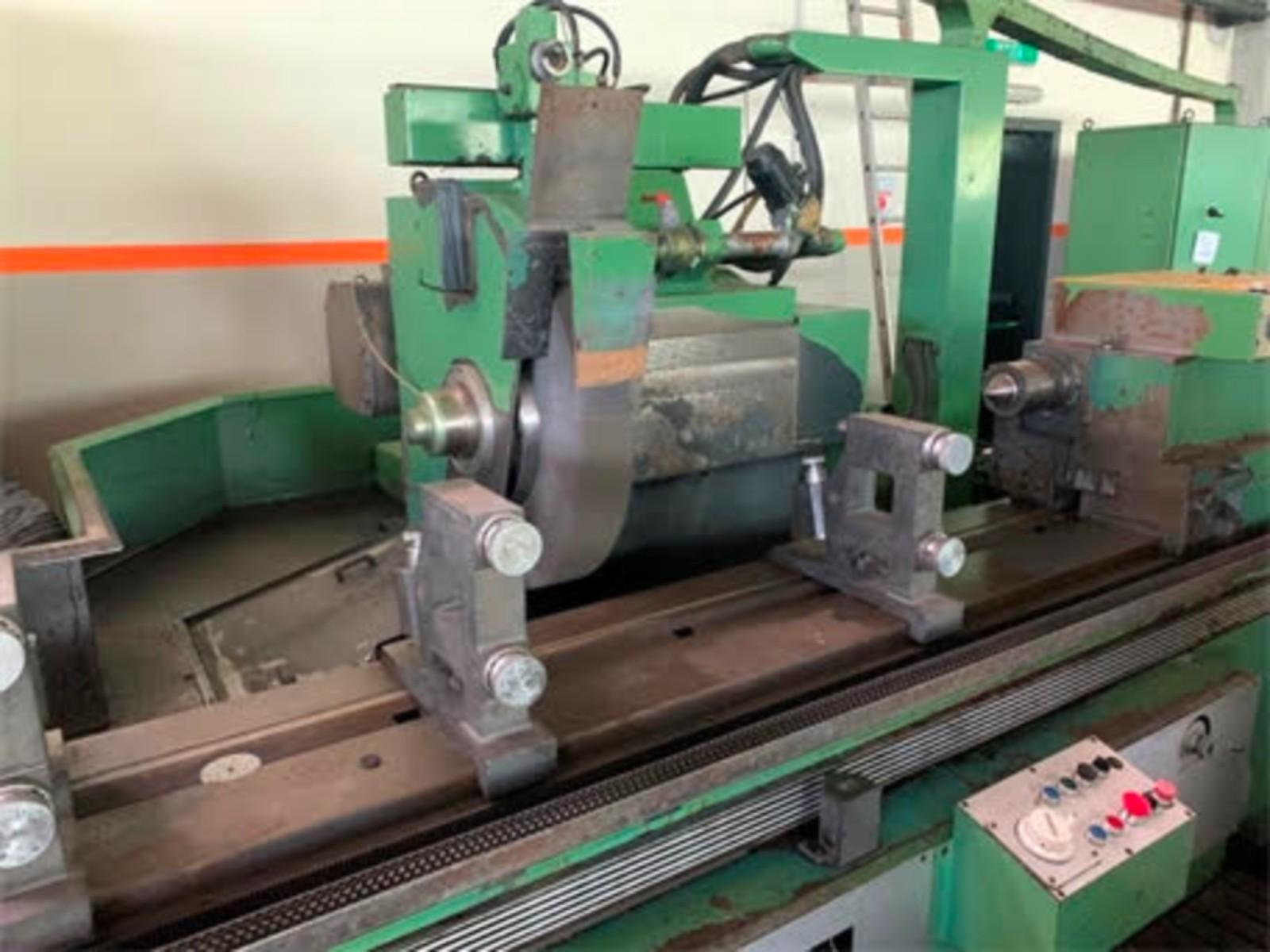

Dimensione mola (diam.xspessorexforo) mm 750x130x305
Velocita' periferica mola m/s 33/45
Velocita' max rotazione mandrino mola S2 g/1' 1800
Potenza motore mola kW 20
TESTA PORTA PEZZO
Angolo della punta gradi 60
Cono canotto CM 6
Motore rotazione mandrino S1 Nm 18
Velocita' rotazione pezzo g/1' 0-130
Orientabilita' nei due sensi gradi +/- 45

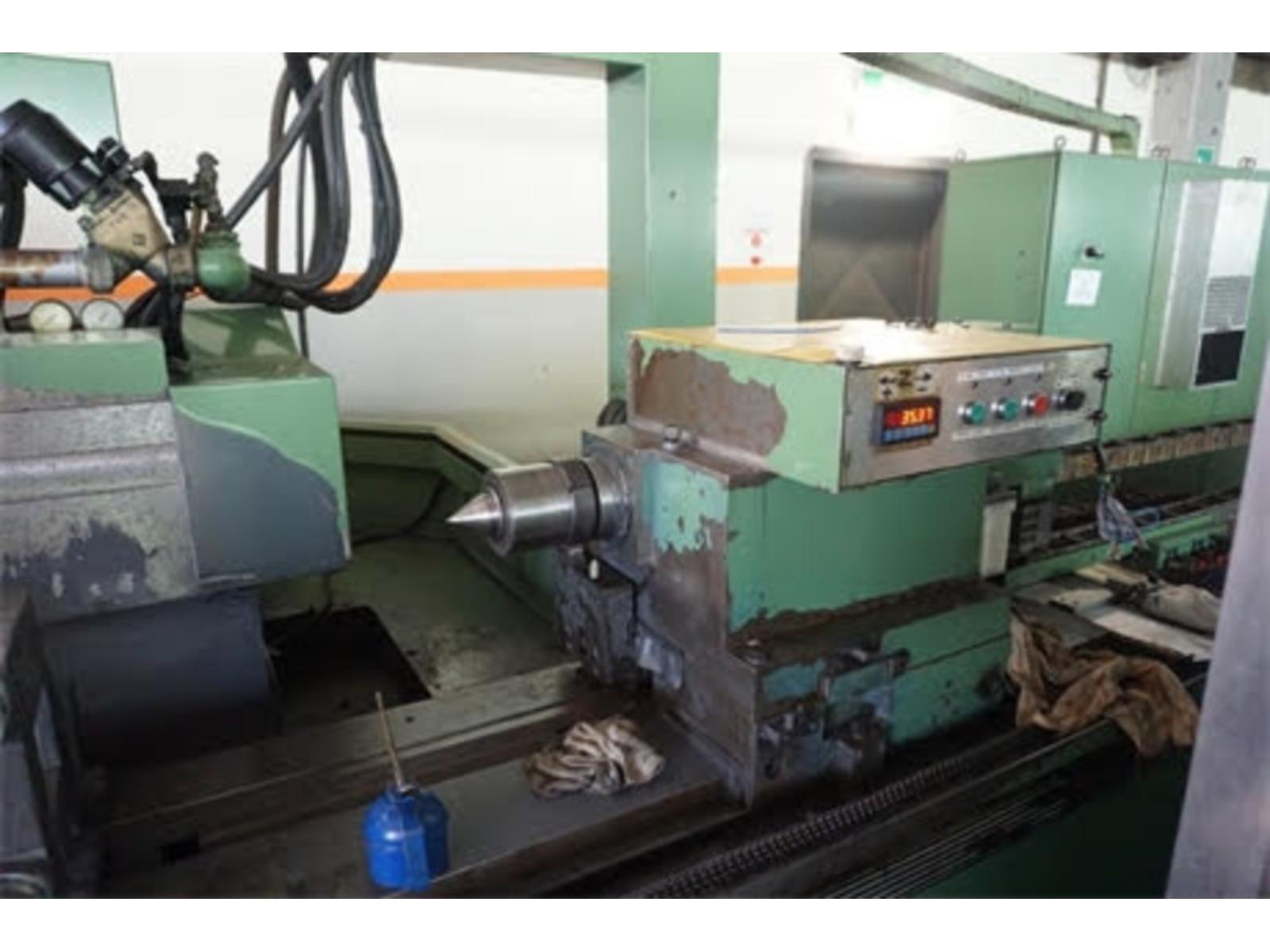

CONTROPUNTA
Angolo della punta gradi 60
Cono canotto CM 6
Corsa max canotto mm 95
TAVOLA
Corsa max longitudinale tavola mm 4250
Inclinazione nei due sensi +/- 4 30' gradi
INGOMBRO E PESO MACCHINA
Peso circa Kg 18500
Lunghezza max mm 13950
Larghezza max mm 3450
Altezza max mm 2300
MACCHINA USATA
ENG:
GIORIA RU/S 4000 CNC
Numerical control Siemens Sinumerik 820T
Max. rotating diameter mm 595
Max. grinding diameter mm 590
Max. grinding length mm 4000
Max. permissible static weight on centres Kg 3000
Permissible static weight of the workpiece clamped on the chuck (max. projection mm 250) Kg 600
Grinding wheel size (diameter x thickness x hole) mm 750x130x305
Grinding wheel peripheral speed m/s 33/45
Max. grinding wheel spindle rotation speed S2 g/1' 1800
Grinding wheel motor power kW 20
WORKPIECE HOLDING HEAD
Tip angle degrees 60
Workpiece taper CM 6
Spindle rotation motor S1 Nm 18
Workpiece rotation speed g/1' 0-130
Swivelling in both directions degrees +/- 45
COUNTERPOINT
Tip angle degrees 60
Sleeve taper CM 6
Max. sleeve stroke mm 95
TABLE
Max. longitudinal table stroke mm 4250
Inclination in both directions +/- 4 30' degrees
MACHINE SIZE AND WEIGHT
Weight approx. Kg 18500
Max. length mm 13950
Maximum width mm 3450
Height max mm 2300
USED MACHINE
B) Bene in buone condizioni d'uso, che è possibile vedere allacciato e funzionante, su appuntamento.
La garanzia sul macchinario è la sua funzionalità in ogni sua parte, ed è possibile visionare il collaudo.
