ASPO recoiler for slitting line 1250x1,5 -8t / NEW coil car - overfloor codice prodotto: 27162

ASPO recoiler for slitting line 1250x1,5 -8t / NEW coil car - overfloor
ASPO recoiler for slitting line 1250x1,5 -8t / NEW coil car - overfloor
 scorri le foto orizzontalmente

Dati tecnici:



NEW recoiler for slitting line 1250x1,5 -8t / NEW coil car - overfloor
Further to your kind inquiry, we send our best offer for the above new machine.

1. LINE MAIN DATA:

Bandbreite / strip width........................... 1.250 mm

Banddicke / strip thickness.....................
0,4 1,5 mm
Coil Gewicht / coil weight........................
8.000 kg
Geschwindigkeit / speed......................... 0-35 m/min.

Coil IØ coil IØ......................................508
mm
Haspelzentrum / center mandrel.................. 1.600 mm

Coil AØ / coil OØ................................... 1.400 mm

Streifenanzahl / no. strips.......................... 6 Stck.

Bundhubwagen / coil car.......................... 8.000 kg

Fahrweg / drive way................................ 3.500 mm

Material / material..................................
Inox / Aluminium
Abschiebeschild / expeller........................ ohne / without

Vorh. Steuerung / exist.electronic................ Siemens ET200S-F

mit / with............................................... SINAMICS S 120

Arbeitsweise / type of work......................
umwickeln / un-rewinding
Längsteilen 6x / slitting 6x

Filzbremse / felt brake............................ vorhanden / existing

Arbeitsrichtung / working direction............
rechts links / right- left
2. EQUIPMENT DESCRIPTION

2.1) RECOILER FOR SLITTING LINE

having the following features:

- Hydraulic expansion

- Mandrel with = 1.300 mm, diameter 508 mm with clamp (left-right direction).

- On board gearbox, oil immersed.

- Expeller, hydraulic

- Separator arm, hydraulic, equipped with adjustable safety pressure relief valve
for automatic lift.

- On board hydraulic equipment with actuators connected to the valves

- Electric oil station with valves on board, voltage 24 VDC

- On board electric equipment connected to a box on board (motors and encoder
will be not connected).

- Rotation motor AC 30 kW-50 Hz suitable for inverter drive. Servo ventilation.
Encoder.

- Coupling with disk brake and pneumatic stationary brake.

- Planetary gearbox.

- Safety guard on coupling.

The machines is offered ready to install, including painting blue coulour RAL 5009
and Orange RAL 1028 or other at customer’s choice.

2.2) DISCHARGE COIL CAR

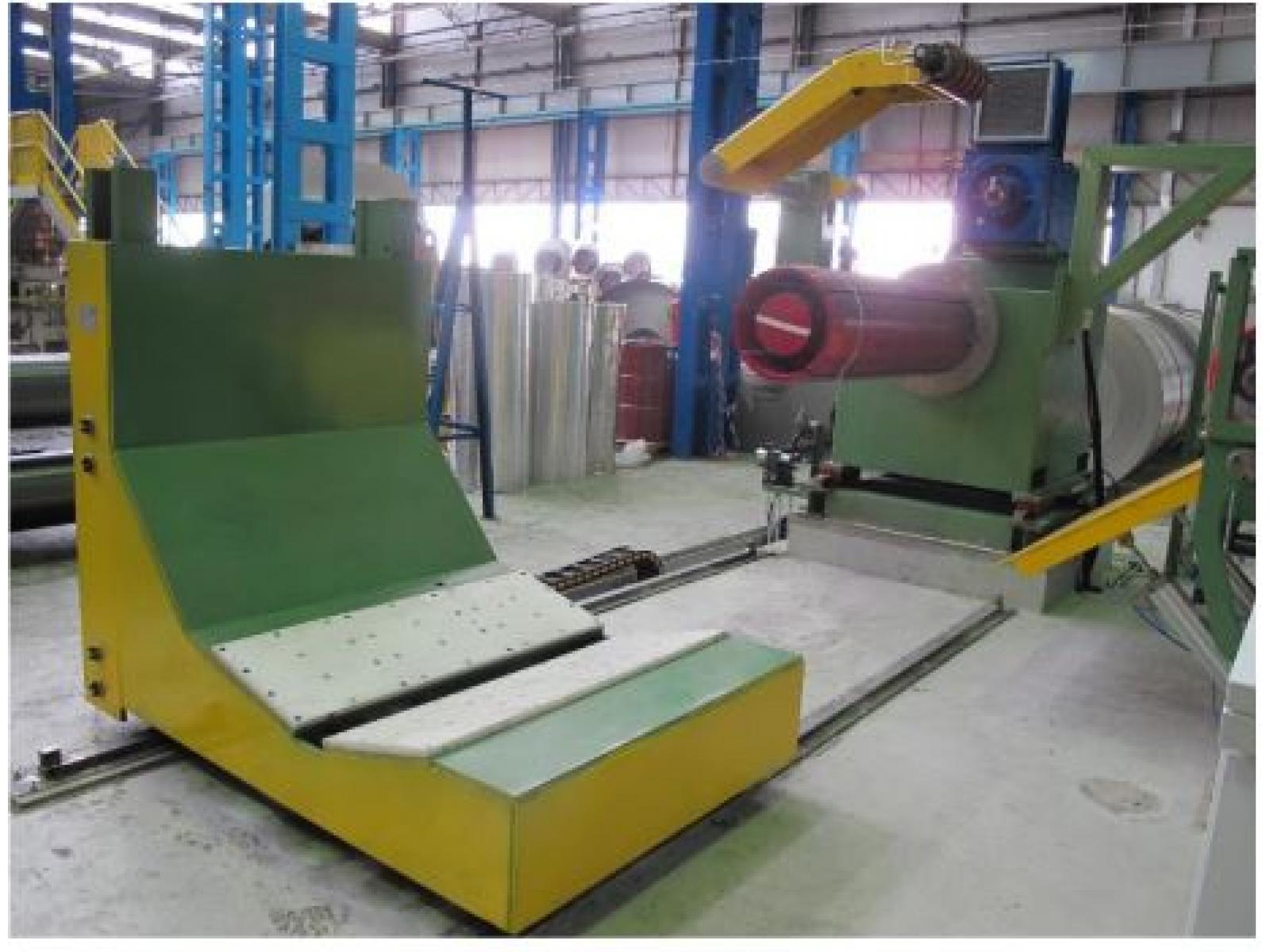

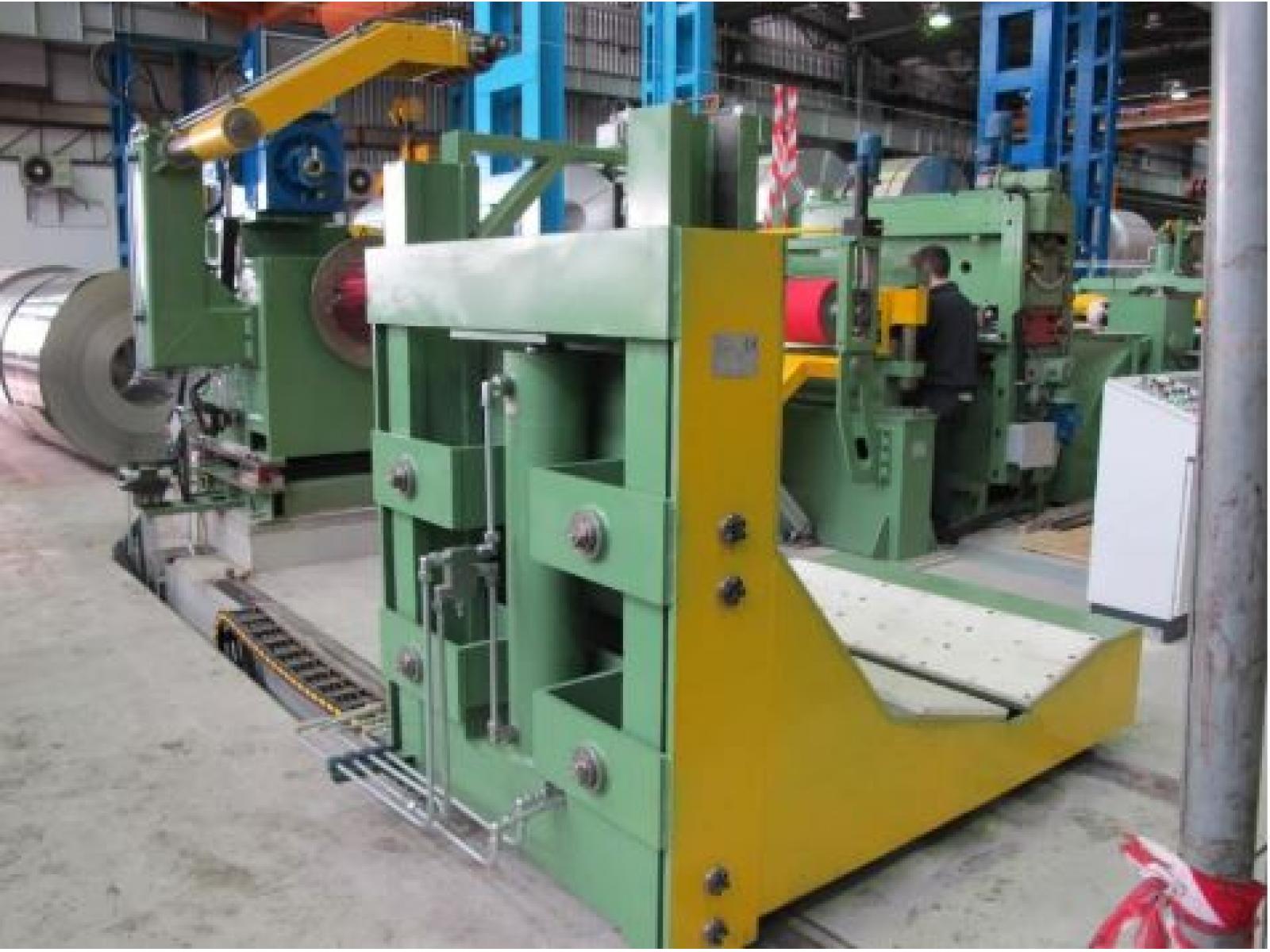

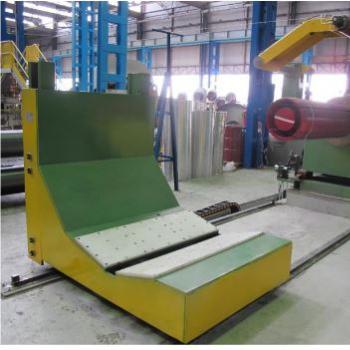

Overfloor coil car, “L” type, having the following features:

Coil weight: 8 t

Useful width: 1.350 mm

Hydraulic motor with planetary gearbox.

Hydraulic cylinder.

Vertical stroke = 400 mm

Horizontal stroke: 3.500 mm

The machines is offered ready to install, including:

-Electric valve installed on board the recoiler, voltage 24 VDC.

- Overcenter valve (safety valve).

- Cable chain with pipes.

- Rails

- Painting green coulour RAL 5009 Orange RAL 1028 or other at customer’s choice.


3. DOCUMENTATION

- Declaration of conformity CE (incorporation).

- Assembly drawing

- Hydraulic and pneumatic drawing

4. VENDORS LIST (upon seller choice)

Hydraulic ATOS BOSCH-REXROTH

Hydraulic pumps BERARMA BOSCH-REXROTH


Pneumatic VESTA SOGEAC NORGREN

Bearings SKF FAG INA

Electric DC motors: ABB SICME

AC Motors SICME-ABB ELECTRO ADDA

Encoders: SICK-ELAP

Proximity sensors TELEMECANIQUE-DATALOGIC

DC or AC Drives ABB

PLC SIEMENS

Others UPON SELLER CHOICE

5. SCOPE OF SUPPLY- DETAIL TABLE

ITEM
SELLER BUYER
Tools (Seprators, spacers..)
x
Lamps/lights, video cameras
x
Connection tables/rollers between machines

First lubrication (grease)
x
Oil and lubricants
x
Electric cabinet/switchboard

Spare parts
x
Perimeter Safety guards, optical fences etc.

Fire detection-fire fighting systems
x
Foundation and masonry work
x
Foundation plates/bars/shims

Foundation bolts/rods

Steel basement over floor level

Platforms/stairs
x
Unloading of machinery
x
Installation

Material for installation (pipes, fittings, cables..)

Compressed air production equpiment
x
Electric power supply line and connection to cabinet
x
Documents translations
x
All what not specified in the quotation
x
6. PRICES:

6.1) Recoiler as item 2.1) ................................................ Euro 86.500,00.-

6.2) Coil car as item 2.2) ................................................. Euro 39.500,00.-


Se
7. PAYMENT TERMS

40% at the order.

50% at the delivery.

10% 30 days from the delivery.

8. DELIVERY: Ex Works.

9. DELIVERY TERMS: 3-4 months from order date and down payment.

9. GUARANTEE:

12 months from the delivery.

Guarantee is released under the standard condition of UCIMU (Italian machine tool
manufacturer association). Are covered by the guarantee, the material only, delivered
Ex Works. For commercial parts are valid the same guarantee conditions of the
producers.

Are not covered by the guarantee the parts in direct contact with the material (rolls,
shear’s knives,...)

The guarantee is released against all defects except the damage due to misuse use or
mis-installation, if not done under our supervision


Visibile a Milano
