ASPO Decoiler for slitting line 1250x1,5 -8t / NEW coil car - overfloor codice prodotto: 27162
scorri le foto orizzontalmente
Affrettati! Questo prodotto è già stato visto 1928 volte! Non fartelo scappare!
Dati tecnici:
NEW Decoiler for slitting line 1250x1,5 -8t / NEW coil car - overfloor
Further to your kind inquiry, we send our best offer for the above new machine.
1. LINE MAIN DATA:
Bandbreite / strip width........................... 1.250 mm
Banddicke / strip thickness..................... 0,4 – 1,5 mm
Coil Gewicht / coil weight........................ 8.000 kg
Geschwindigkeit / speed......................... 0-35 m/min.
Coil IØ coil IØ......................................508 mm
Haspelzentrum / center mandrel.................. 1.600 mm
Coil AØ / coil OØ................................... 1.400 mm
Streifenanzahl / no. strips.......................... 6 Stck.
Bundhubwagen / coil car.......................... 8.000 kg
Fahrweg / drive way................................ 3.500 mm
Material / material.................................. Inox / Aluminium
Abschiebeschild / expeller........................ ohne / without
Vorh. Steuerung / exist.electronic................ Siemens ET200S-F
mit / with............................................... SINAMICS S 120
Arbeitsweise / type of work...................... umwickeln / un-rewinding
Längsteilen 6x / slitting 6x
Filzbremse / felt brake............................ vorhanden / existing
Arbeitsrichtung / working direction............ rechts – links / right- left
2. EQUIPMENT DESCRIPTION
2.1) RECOILER FOR SLITTING LINE
having the following features:
- Hydraulic expansion
- Mandrel with = 1.300 mm, diameter 508 mm with clamp (left-right direction).
- On board gearbox, oil immersed.
- Expeller, hydraulic
- Separator arm, hydraulic, equipped with adjustable safety pressure relief valve
for automatic lift.
- On board hydraulic equipment with actuators connected to the valves
- Electric oil station with valves on board, voltage 24 VDC
- On board electric equipment connected to a box on board (motors and encoder
will be not connected).
- Rotation motor AC 30 kW-50 Hz suitable for inverter drive. Servo ventilation.
Encoder.
- Coupling with disk brake and pneumatic stationary brake.
- Planetary gearbox.
- Safety guard on coupling.
The machines is offered ready to install, including painting blue coulour RAL 5009
and Orange RAL 1028 or other at customer’s choice.
2.2) DISCHARGE COIL CAR

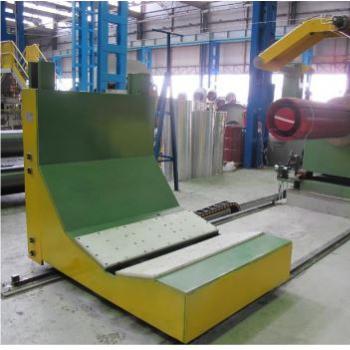

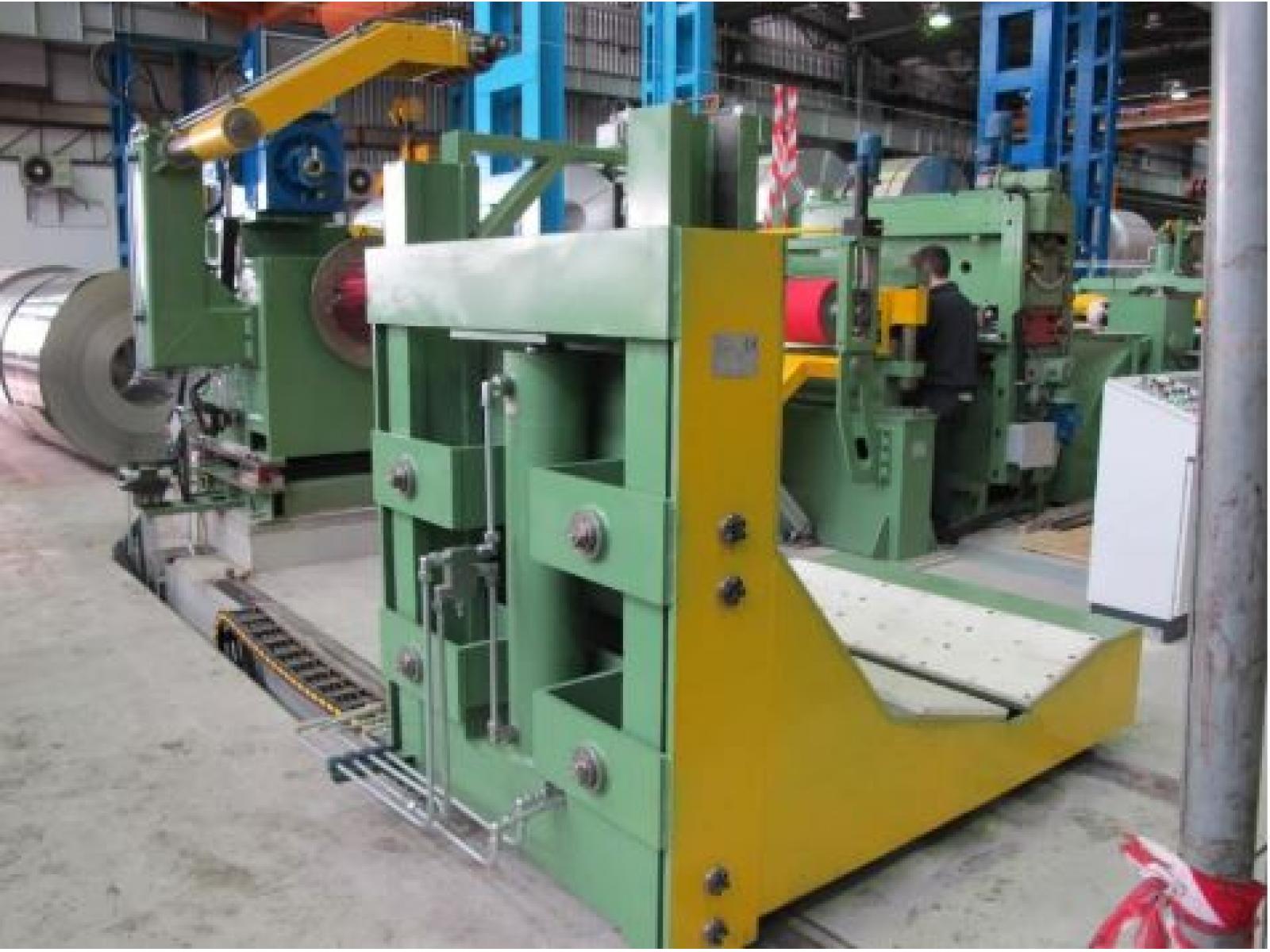

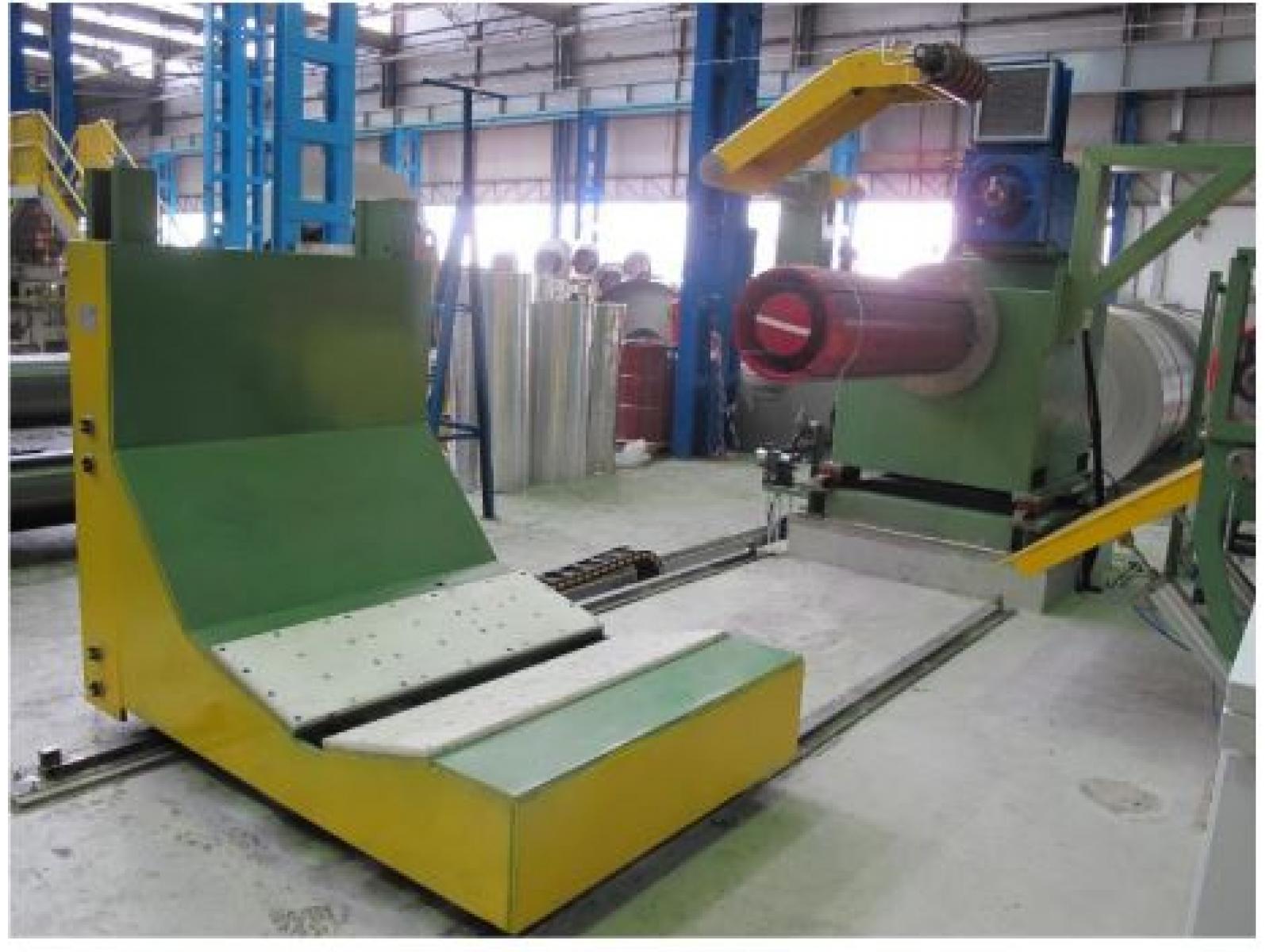

Overfloor coil car, “L” type, having the following features:
Coil weight: 8 t
Useful width: 1.350 mm
Hydraulic motor with planetary gearbox.
Hydraulic cylinder.
Vertical stroke = 400 mm
Horizontal stroke: 3.500 mm
The machines is offered ready to install, including:
-Electric valve installed on board the recoiler, voltage 24 VDC.
- Overcenter valve (safety valve).
- Cable chain with pipes.
- Rails
- Painting green coulour RAL 5009 Orange RAL 1028 or other at customer’s choice.
3. DOCUMENTATION
- Declaration of conformity CE (incorporation).
- Assembly drawing
- Hydraulic and pneumatic drawing
4. VENDORS LIST (upon seller choice)
Hydraulic ATOS – BOSCH-REXROTH
Hydraulic pumps BERARMA– BOSCH-REXROTH
Pneumatic VESTA – SOGEAC – NORGREN
Bearings SKF – FAG– INA
Electric DC motors: ABB – SICME
AC Motors SICME-ABB – ELECTRO ADDA
Encoders: SICK-ELAP
Proximity sensors TELEMECANIQUE-DATALOGIC
DC or AC Drives ABB
PLC SIEMENS
Others UPON SELLER CHOICE
5. SCOPE OF SUPPLY- DETAIL TABLE
ITEM SELLER BUYER
Tools (Seprators, spacers..) x
Lamps/lights, video cameras x
Connection tables/rollers between machines
First lubrication (grease) x
Oil and lubricants x
Electric cabinet/switchboard
Spare parts x
Perimeter Safety guards, optical fences etc.
Fire detection-fire fighting systems x
Foundation and masonry work x
Foundation plates/bars/shims
Foundation bolts/rods
Steel basement over floor level
Platforms/stairs x
Unloading of machinery x
Installation
Material for installation (pipes, fittings, cables..)
Compressed air production equpiment x
Electric power supply line and connection to cabinet x
Documents translations x
All what not specified in the quotation x
6. PRICES:
6.1) Recoiler as item 2.1) ................................................ Euro 86.500,00.-
6.2) Coil car as item 2.2) ................................................. Euro 39.500,00.-
Se
7. PAYMENT TERMS
40% at the order.
50% at the delivery.
10% 30 days from the delivery.
8. DELIVERY: Ex Works.
9. DELIVERY TERMS: 3-4 months from order date and down payment.
9. GUARANTEE:
12 months from the delivery.
Guarantee is released under the standard condition of UCIMU (Italian machine tool
manufacturer association). Are covered by the guarantee, the material only, delivered
Ex Works. For commercial parts are valid the same guarantee conditions of the
producers.
Are not covered by the guarantee the parts in direct contact with the material (rolls,
shear’s knives,...)
The guarantee is released against all defects except the damage due to misuse use or
mis-installation, if not done under our supervision
