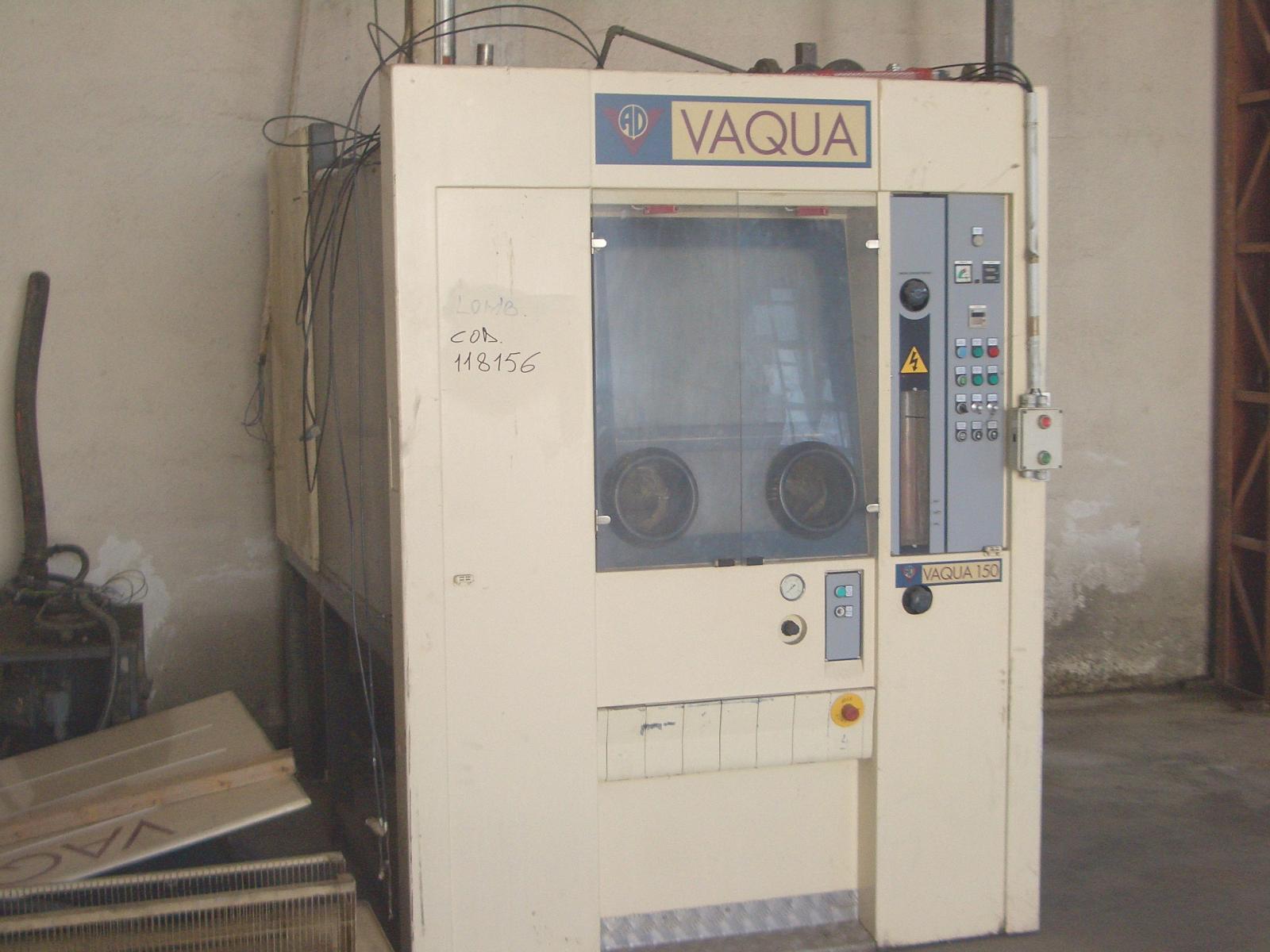

Sabbiatrice "ADL" a umido Special 1300MM Vaqua "D" process usata

od.118156 Sabbiatrice a umido Special 1300MM Vaqua “D”

Process usato

Marca: “Abrasive Developments Limited”

Anno: 1984

Matricola: 6581

Caratteristiche: - Water Capacity

- Cabinet sump Approximately 211 litres

- Media Loading

- Processing media Approximately 32 kg maximum

(The precise amount loaded is not critical and lower

amounts to suit the application may be loaded. Do not

exceed the given maximum as blockages may occur. See

Installation instructions.)

- Motor Ratings

- Media pump motor Two speed 7½ / 15HP

280 or 440 Volts

3 phase

50 Hz

operating at 1140 / 2880 RPM

- Turntable drive motor ¾ HP

- Oscillation Unit Cylinder

- Bore size 4’’ (100 mm)

- Stroke length 12’’ (300 mm)

- Speed Variable depending on inlet air pressure

and positioning of limit switches

- Machine Load Capacity

- 12 cwt. (600 kg) maximum, evenly distributed

on turntable

- Electrical

- Sump heater 4 kW

- Machine lighting 3 x 110 Volts, 20 Watts tubes

- Window wiper motor 13 Volts

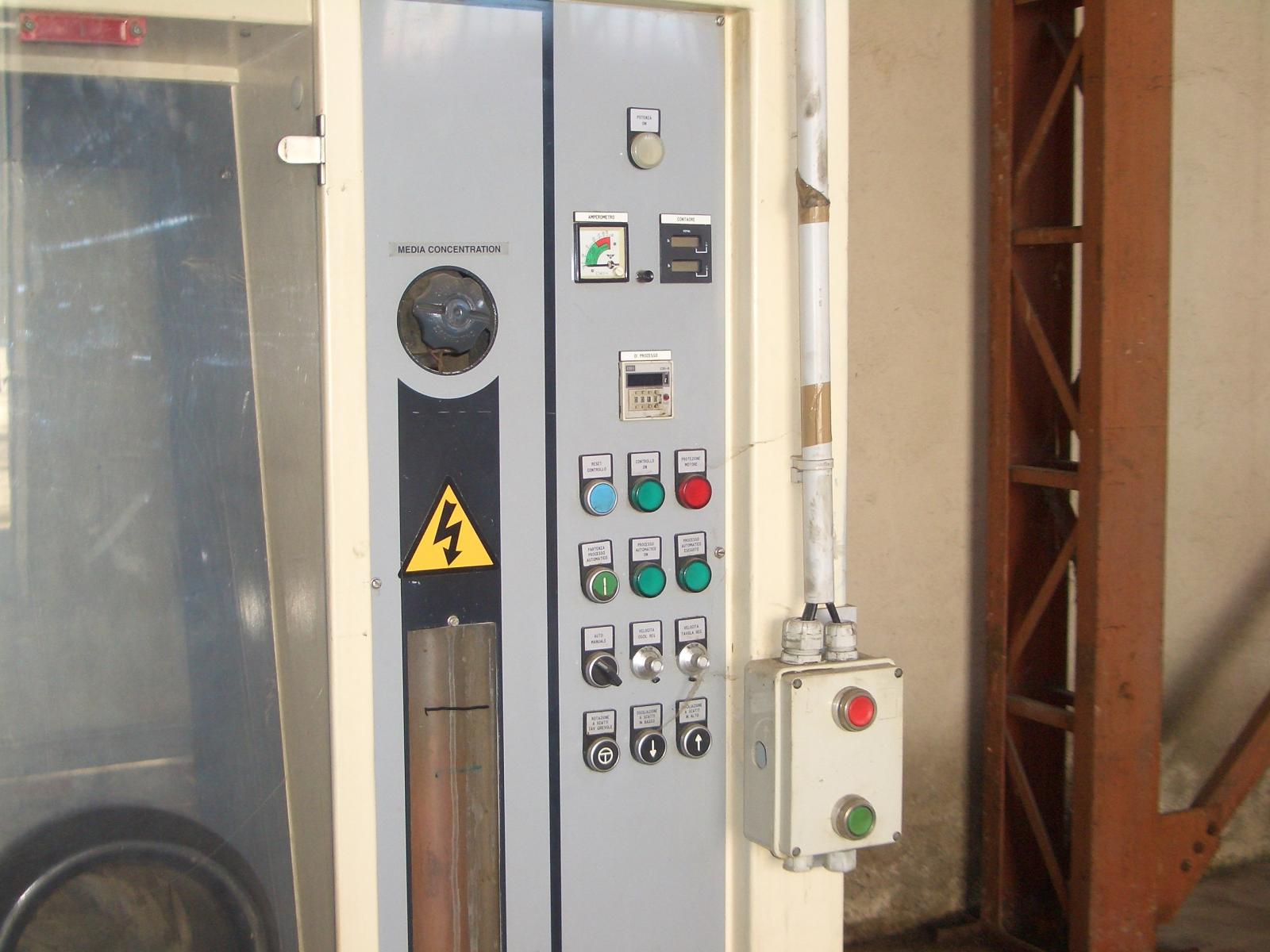

- Control voltage 110 Volts, single phase, 50 Hz

- Services Required

- Water supply Via ½ BSP connection

- Electrical supply 380/440 Volts, 3 phase, 50 Hz, 3 wire

- Compressed air supply

Connection Via 1’’ BSP connection

Inlet air pressare

1. Process gun 80/100 p.s.i. (5.6/7.0 kg/cm²)

2. Oscillation 40/ 60 p.s.i. (2.8/4.2 kg/cm²)

- Air consumption 40/60 c.f.m. (1.13/1.7 cu.m³ / minute)

Completo di: - Libri d’uso e manutenzione
