posizionatori
Codice di riferimento: 5513
Immagini del prodotto:
Dati tecnici:
LAMBERT-JOUTY - 38800 PONT DE CLAIX - FRANCE

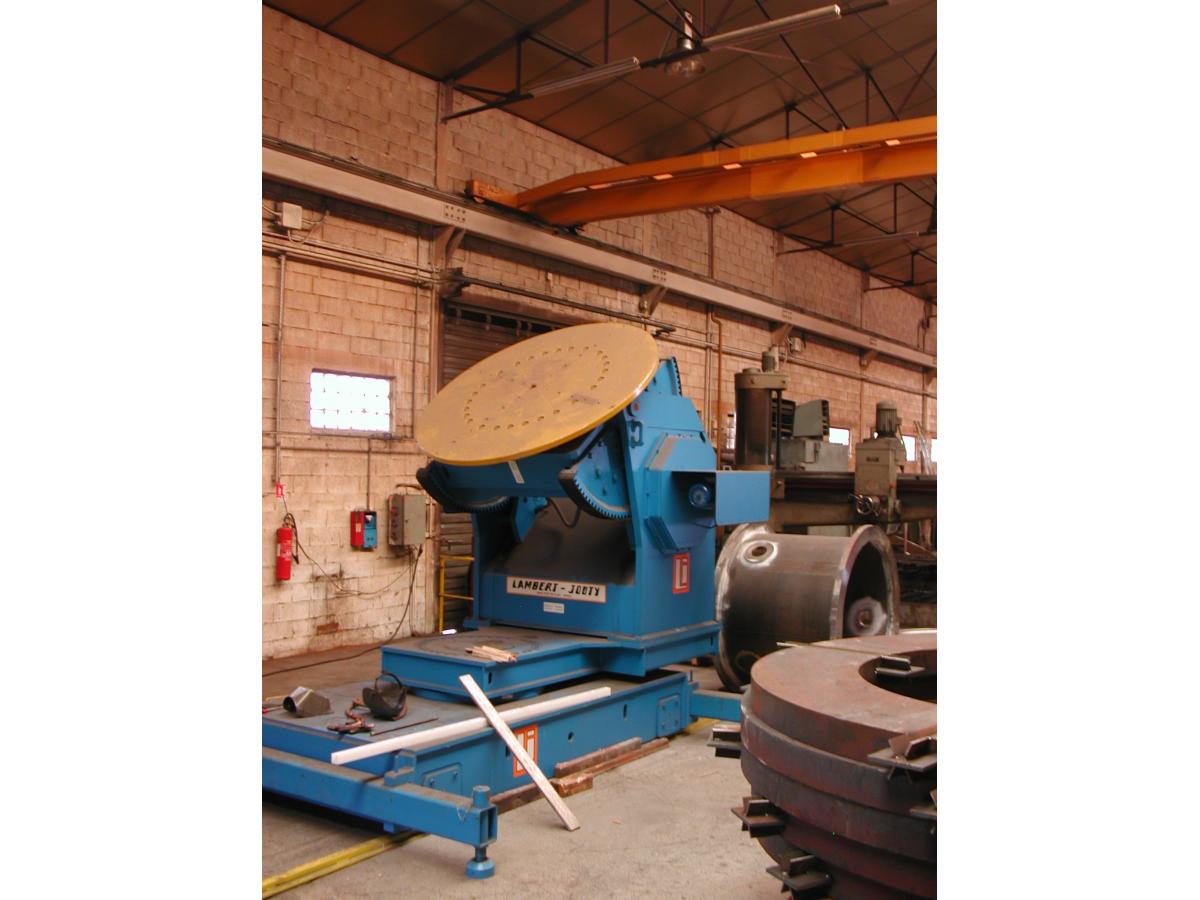

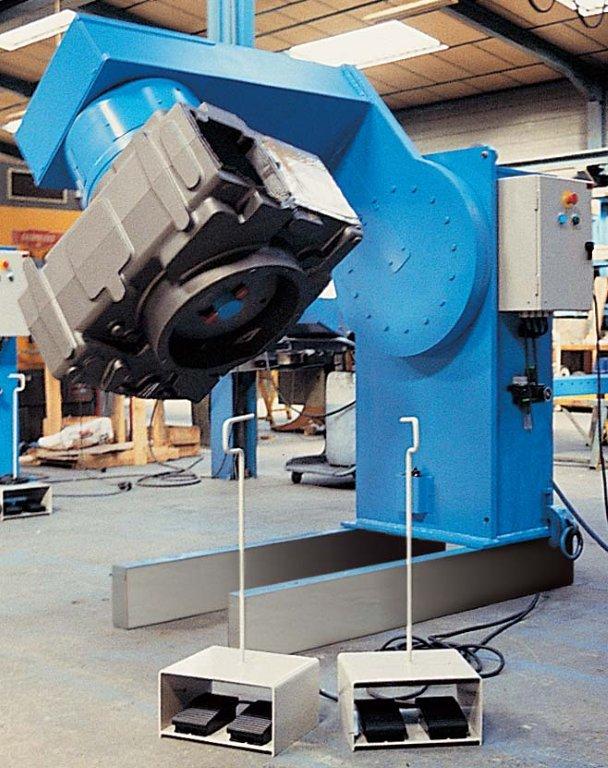

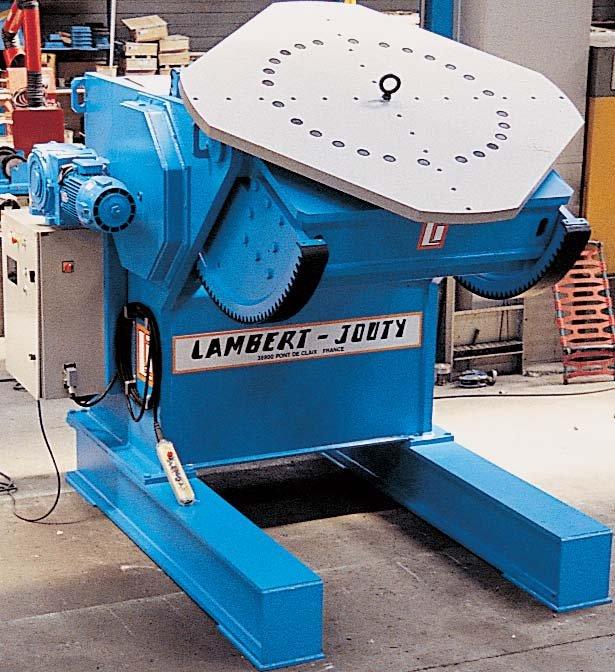

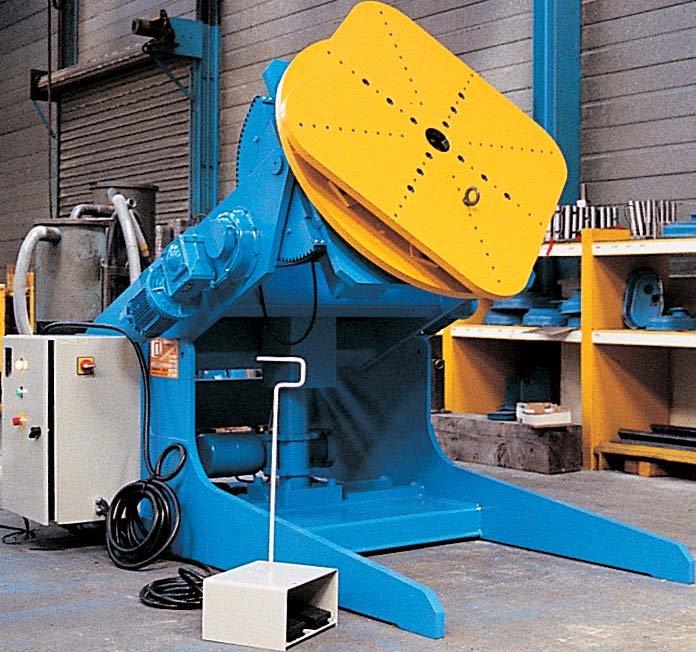

POSITIONER P-j5
CHARACTERISTICS
MAX CAPACITY
ROTATING
(cf abacus) 40 t
- Crossed rollers bearings + motoreducer
- Torque
- Speed - F version
- V version - AC motor +
frequency regulator +
numerical speed indicator
4 000 daN*m
0.2 min
-1
0.025 ÷ 0.4 min
-1
TILTING 0 - 135
/
- Tooth sectors + motoreducer (brake motor)
- Fixed speed
- Torque
0.3 min
-1
16 000 daN*m
TABLE
- Diameter x thickness
- Number of lines of holes
- Tilting axis height
Ų 1 800 x 50 mm
4
2 000 mm
ELECTRICAL EQUIPMENT
- Main control box including tilting controls
- Independent remote control box for rotating
- Main supply
- Maximum required power
on frame
5 m cable
380÷415V/3/50Hz
.
WEIGHT
PAINTING blue RAL 5015
11.4 kW. 7 000 kg
EXWORKS PRICES
(packing excluded) on 25-09-2006
- F version
- V version
78 345
i
83 619
i
COMMERCIAL CONDITIONS
PRESENT DELIVERY TIME
PAYMENT
- Down payment
- Balance
(out of holiday) To be confirmed:
20 % with the order
when delivery
OFFER VALIDITY 2 months
OPTIONAL
- Different painting colour, price per colour
- Groundblock n x 500 A
- High speed without modifying work speed
- Equipment with tachy / encoder for speed range 0.005 ÷ 0.4 min
