LINEA DI TAGLIO GUIDA
Codice di riferimento: 6569

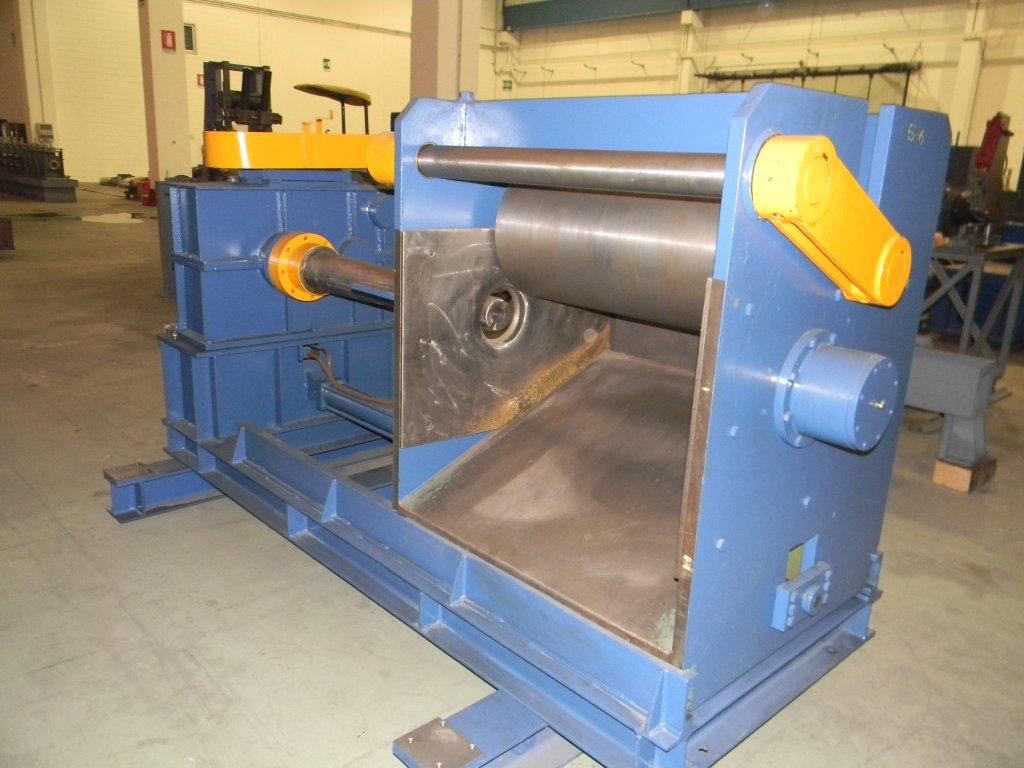

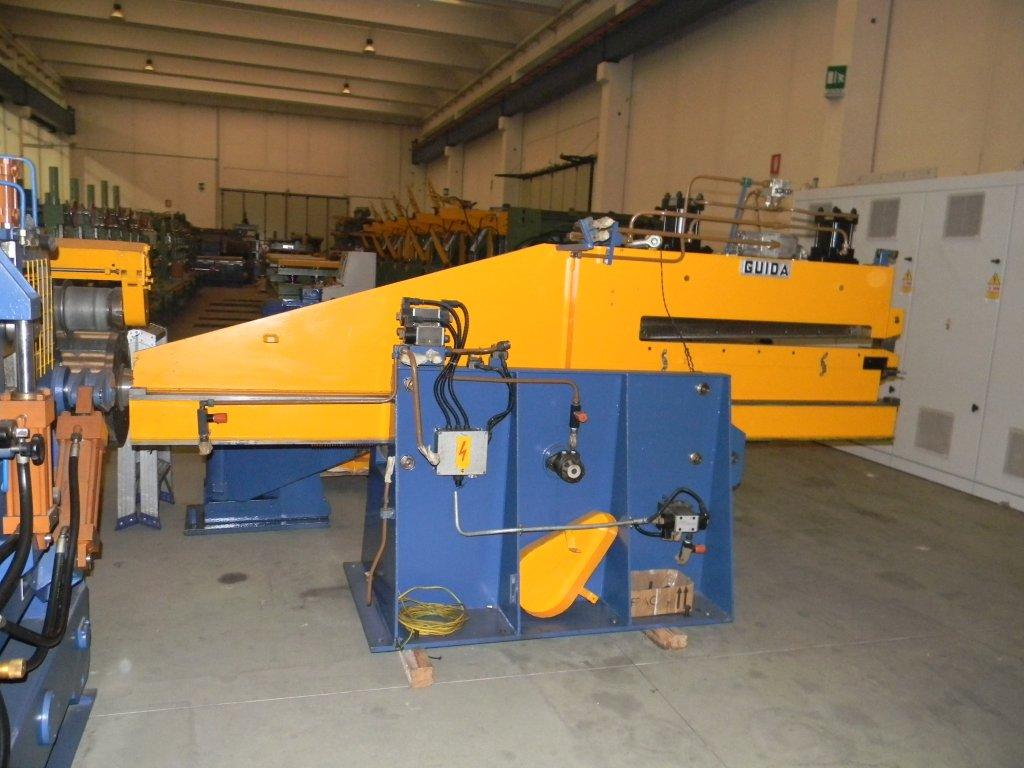

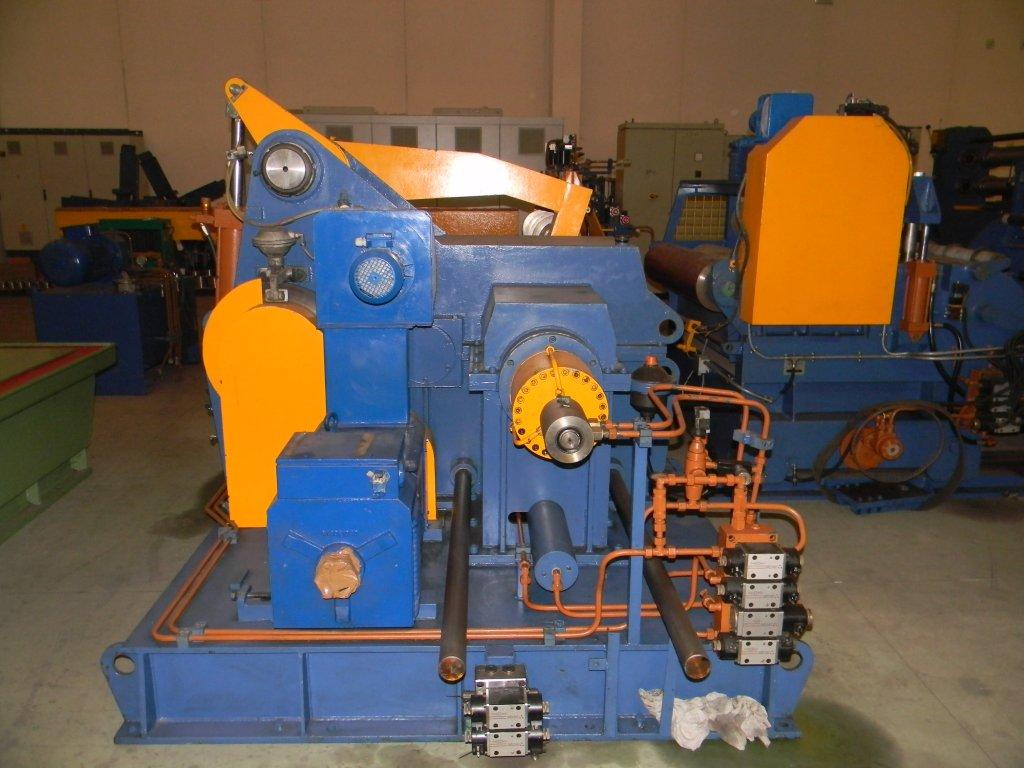

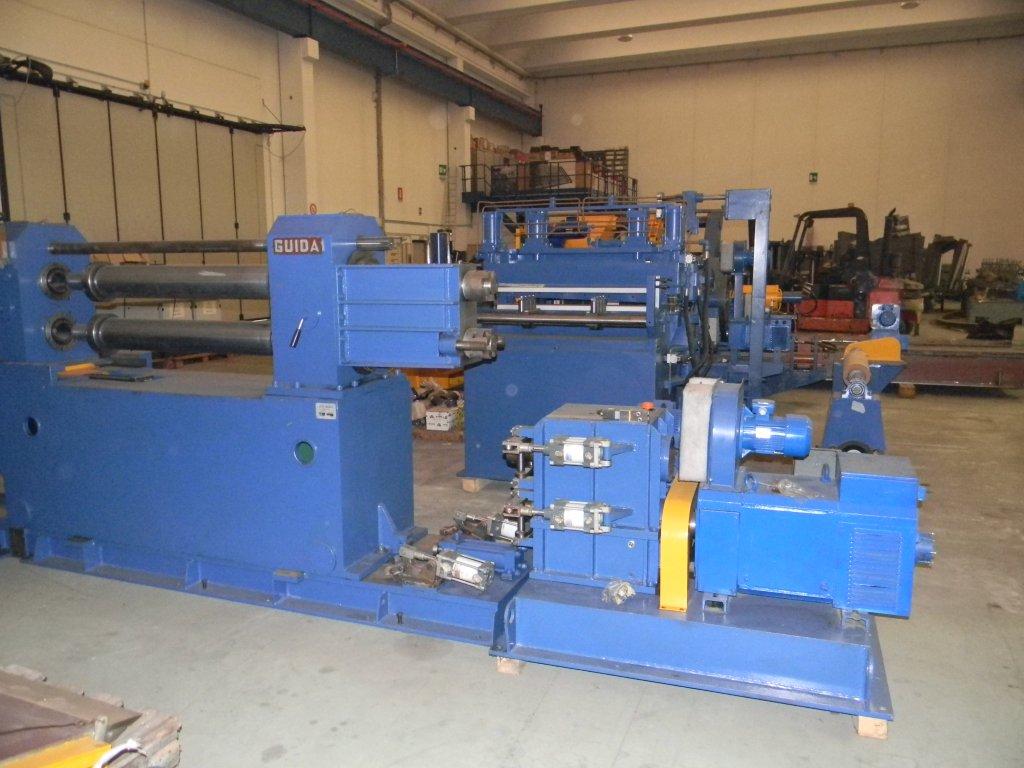

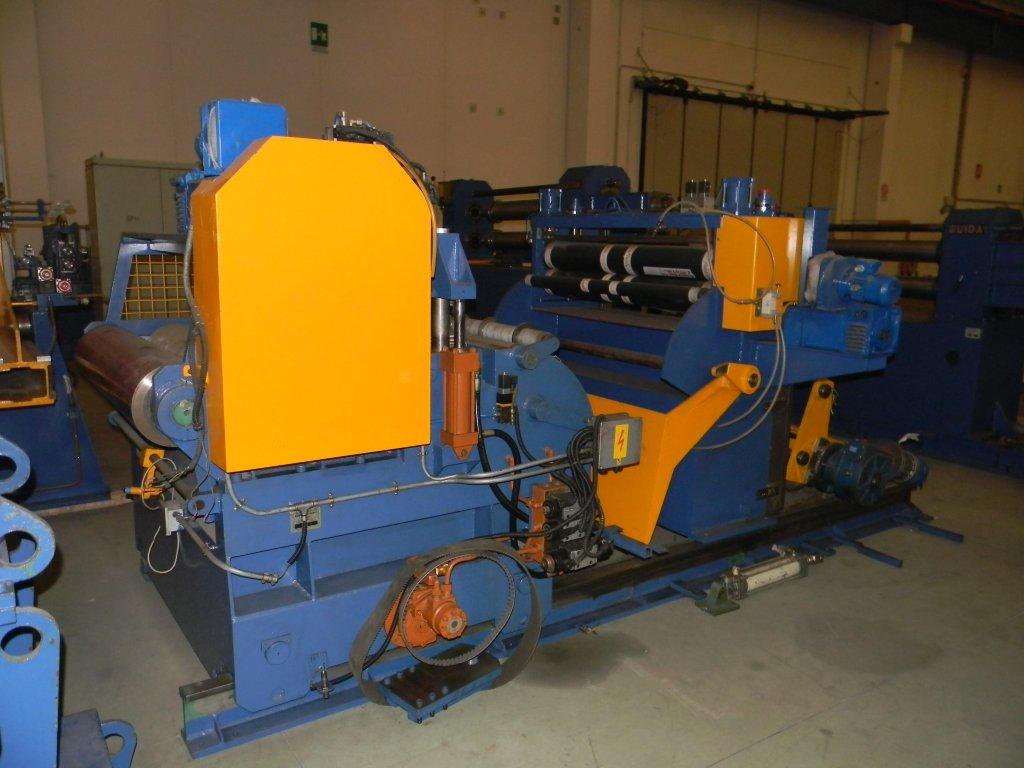

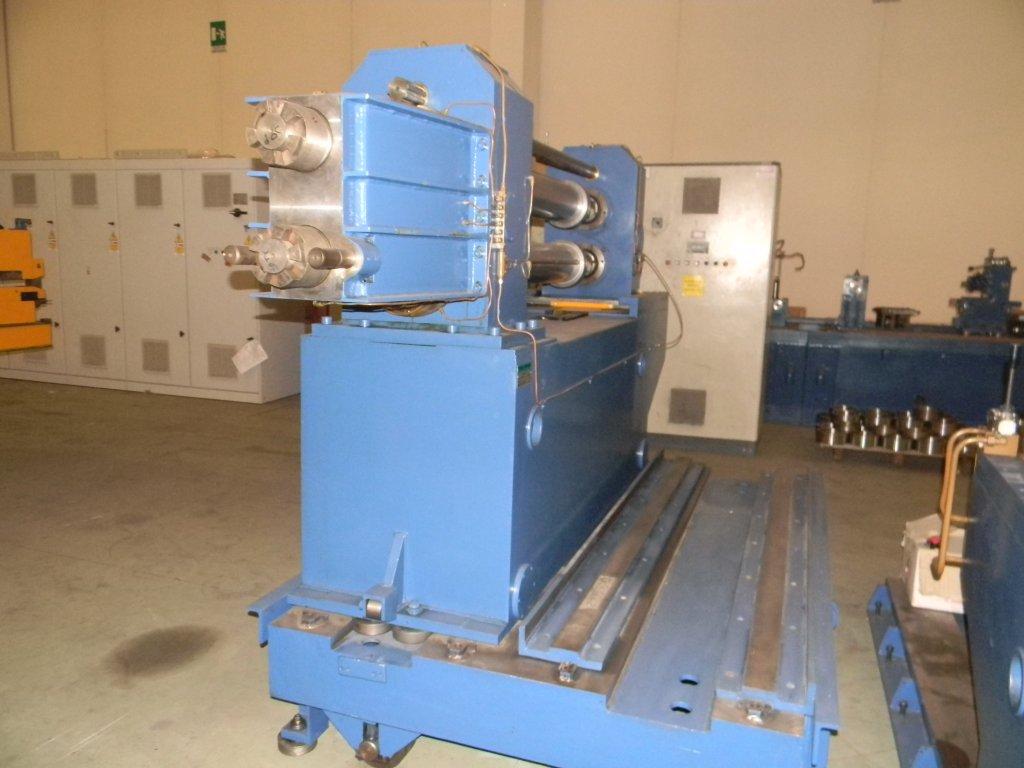

Immagini del prodotto:
Dati tecnici:
GENERAL DETAILS
Manufacturer GUIDA
Overhauled Addafer , 2008
Indicative pass line height 1.000 mm
Indicative length of the line 20 m
Indicative width of the line 6 m
Working speed 125-250 m/min
Direction Left - Right
Shaft Ø 160 mm
Blade Ø 250 mm
SCOPE OF SUPPLY
Item 01 Charge coil car
Item 02 Un-coiler,
Item 03 Introduction / coil opening unit
Item 04 Pinch-roll
Item 05 Butting shear / guiding group
Item 06 Circular blades shear
Item 07 Burrs presser
Item 08 Side scrap winder
Item 09 Overpass table
Item 10 Saddles
SLITTING LINE 1000 x 4 mm
USED / OVERHAULED
Coil weight 12.000 kg
External Coil Ø 1.500 mm
Internal Coil Ø 500 mm
Max strip width 1.000 mm
Strip thickness0,4 – 4 mm
Material CRC – Pickled – Coated
Galvanized - Stainless
Recoiler Ø 400-500-600 mm
Item 11 Tensioning group
Item 12 Transversal shear
Item 13 Re-coiler
Item 14 Unloading coil car
Item 15 Motorized discharging carousel
Item 16 Protection barriers
Item 17 Hydraulic equipment
Item 18 Electric equipment
INSTALLATION AND START-UP
- Aligning and fixing of our machines -
- Idle tests of machines
Checking of electrical hydraulic and pneumatic connections between our machines -
Production tests SLITTING LINE 1000 x 4 mm
