Dati tecnici:
|

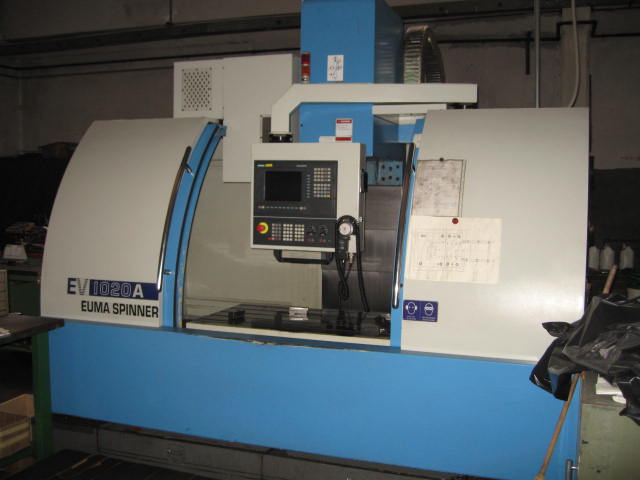

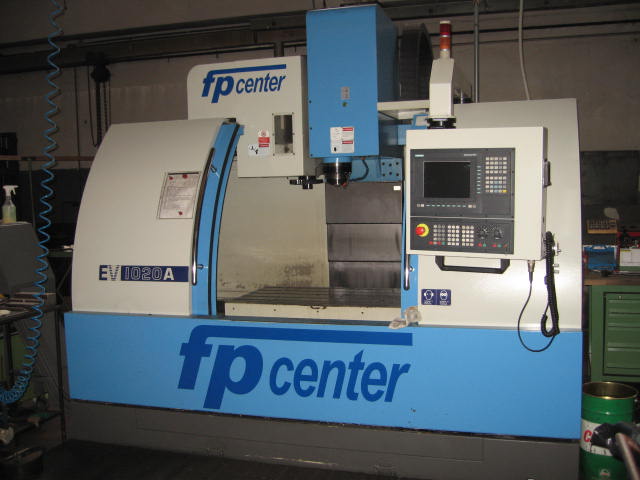

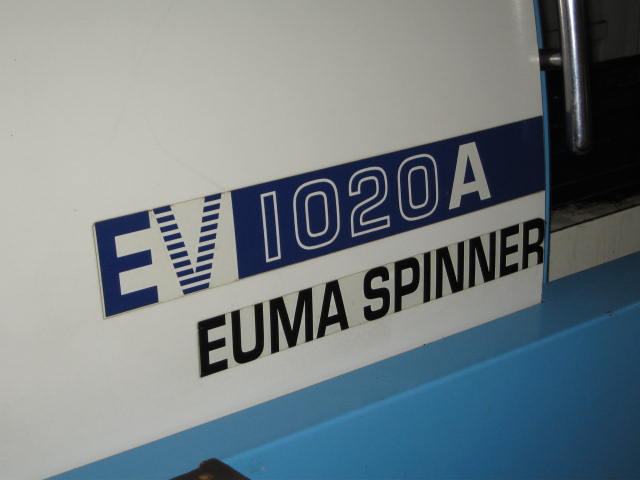

N°02 CENTRI DI LAVORO CNC EUMA MOD.EV-1020A

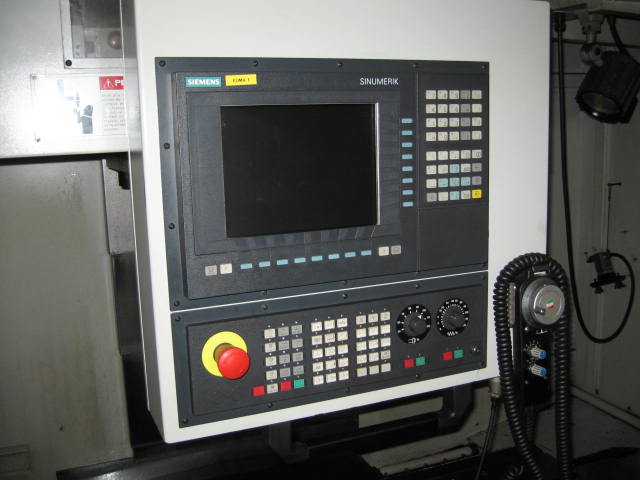

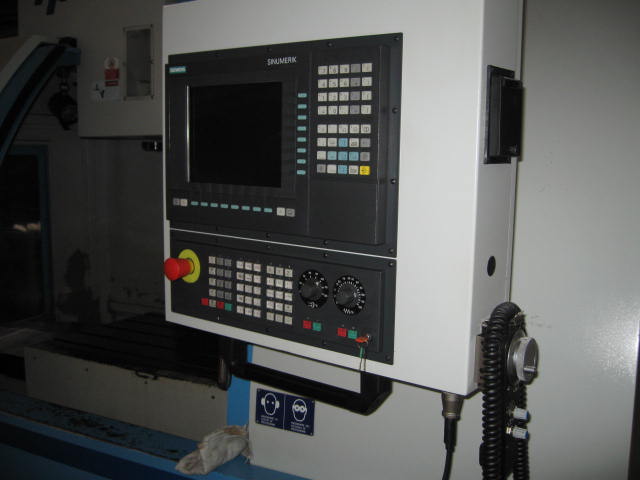

CNC SIEMENS SIMNUMERIK
ANNO 2003
MACCHINE PARI AL NUOVO OTTIME CONDIZIONI

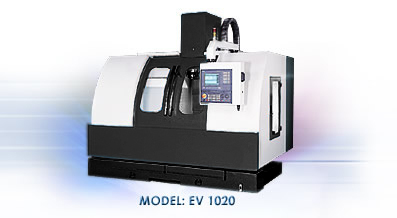

Model
|
|
EV-1020
|
EV-1020A
|
|
| X axis stroke |
mm |
1020
|
| Y axis stroke |
mm |
610
|
| Z axis stroke |
mm |
610
|
| Spindle nose to table surface |
mm |
150-760
|
| Spindle center to column surface |
mm |
650
|

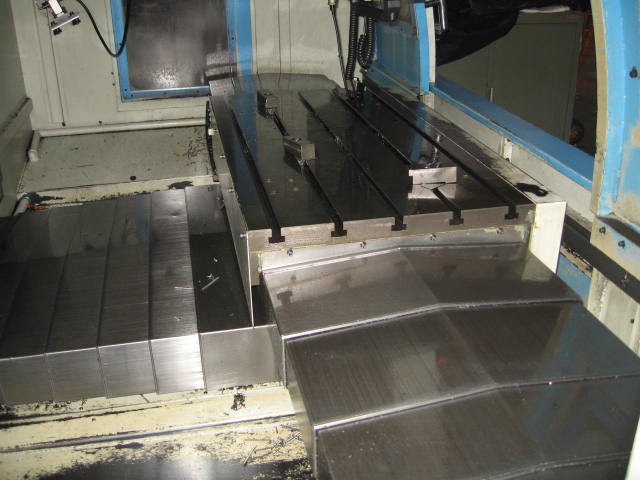

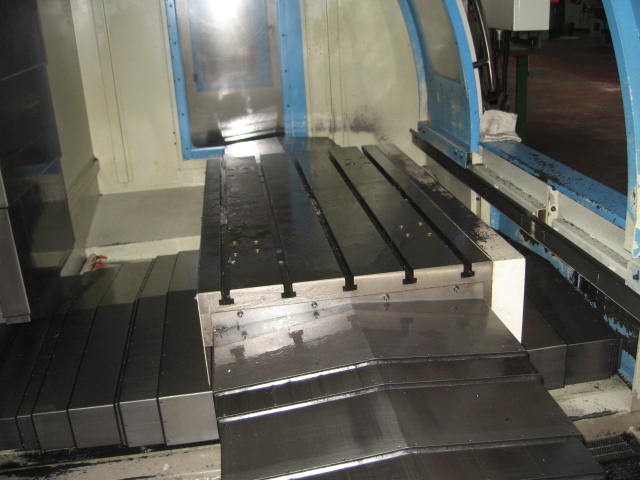

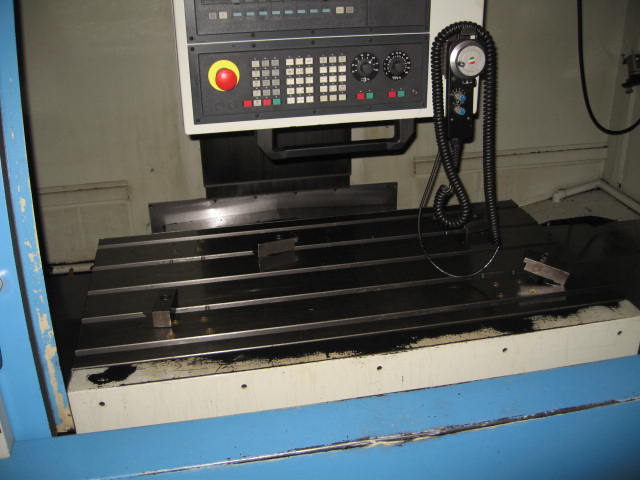

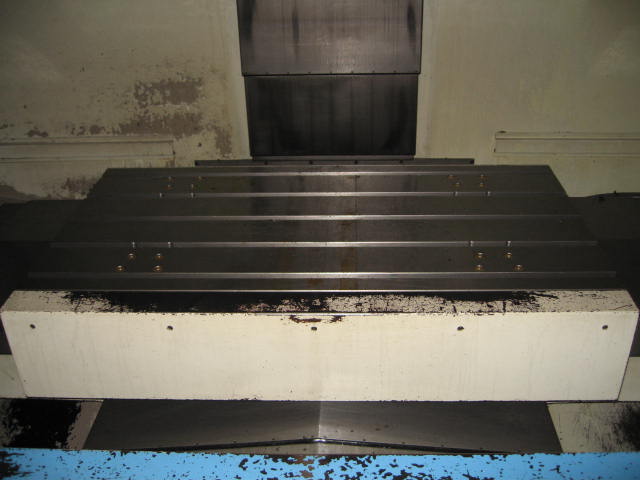

| Table size |
mm |
1200 x 610
|
| Table max. loading |
kg |
1000
|
| T-slots (Width x Pitch x No.) |
mm |
18 x 125 x 5
|
| Spindle speed (standard) |
rpm |
80-8000
|
80-8000
|
|
| Spindle taper |
|
ISO 40
|
ISO 40
|
|
| Spindle diameter |
mm |
Ø 70
|
Ø 70
|
|
| Rapid traverse (X/Y/Z) |
M/min |
32/32/24
|
| Cutting feedrate (X/Y/Z) |
mm/min |
1-10000
|
| Tool shank type |
|
BT 40
|
BT 40
|
|

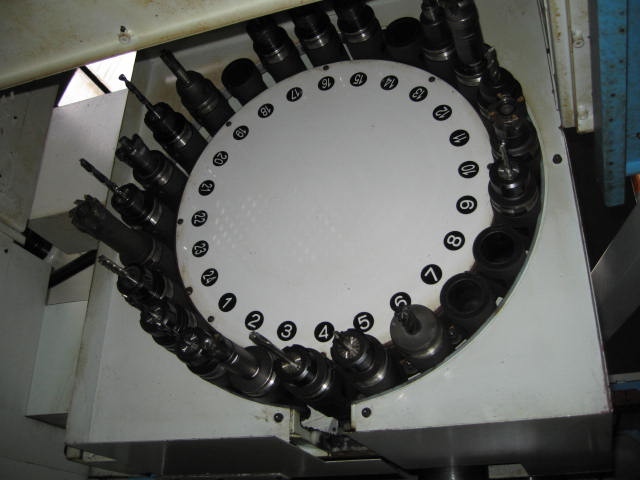

| Tool storage capacity |
pcs |
24
|
24 (32)
|
|
| Max. tool dia. Adjacent VA |
mm |
Ø90/Ø150
|
Ø77/Ø130
|
|
| Max. tool length |
mm |
300
|
250
|
|
| Max. tool weight |
kg |
8
|
8
|
|
| Tool change type |
|
Carousel Type
|
Arm Type
|
|
| Tool change time (tool to tool) |
sec |
7
|
2.5 (1.3)
|
|
| Spindle motor (cont. /30 min) SIEMENS |
kw |
AC 12/18.5
|
| Feed motor (X/Y/Z) SIEMENS |
kw |
AC 3.5/3.5/3.5
|
| Coolant pump |
kw |
1.6+1.6
|
| Air requirement |
kg/cm² |
6
|
| Power requirement |
KVA |
30
|
| Floor space |
mm |
2900 x 2450
|
| Machine height |
mm |
2820
|
| Machine weight |
kg |
8000
|
8000
|
|
* Specifications are subject to R & D modification without any prior notice.
Standard Accessories
- Fully enclosed splash guard
- Armless type automatic tool changer
- Arm type automatic tool changer
(EV-650A / EV-810A / EV-1020A / EV1300A / MV-1600A)
- Coolant supply unit
- Auto lubrication system
- Spindle air blast system
- Working lamp
- 2 Step gearbox (MV 1600A)
- RS-232 interface
- Movable handwheel
- Heat exchanger
- Power chip flush nozzle
- Auto power off
- Rigid tapping
- Standard service tool kit
- Leveling bolts and pads
- Automatic power off M30
- Coolant flushing device
Optional Accessories
- Chip conveyor
- Spindle oil coolant
- Coolant through spindle (Form A)
- 10000 RPM spindle
- 20000 RPM high speed cutting spindle
- CNC 4th axis rotary table
- Automatic tool length measurement
PREZZI : MODELLO CON EVAQUATORE EURO 56.000,00+IVA
MODELLO SENZA EVAQUATORE EURO 54.000,00+IVA
IL PREZZO SI INTENDE COMPRENSIVO DI ATTREZZATURE CORREDATE E BANCHETTO DI LAVORO.
CONSEGNA: PRONTA
MACCHINE ANCORA POSIZIONATE PRESSO L'AZIENDA IN LIQUIDAZIONE VISIBILI SU APPUNTAMENTO
