Calandra VERRINA 4080MM X 120
Codice di riferimento: 6811

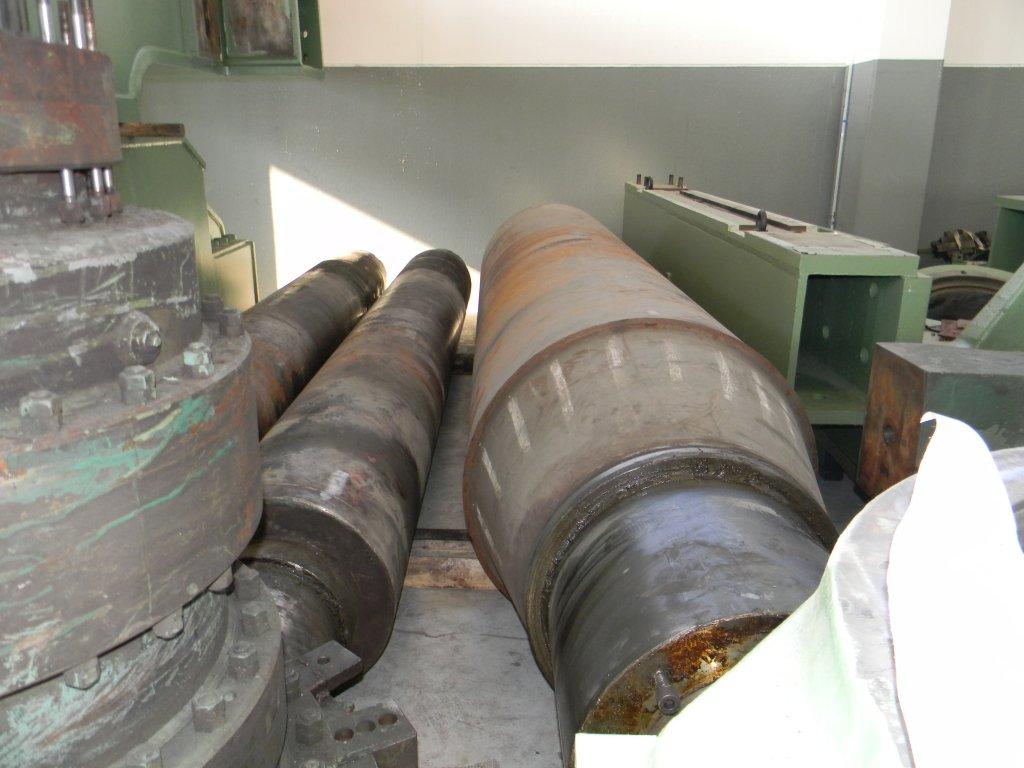

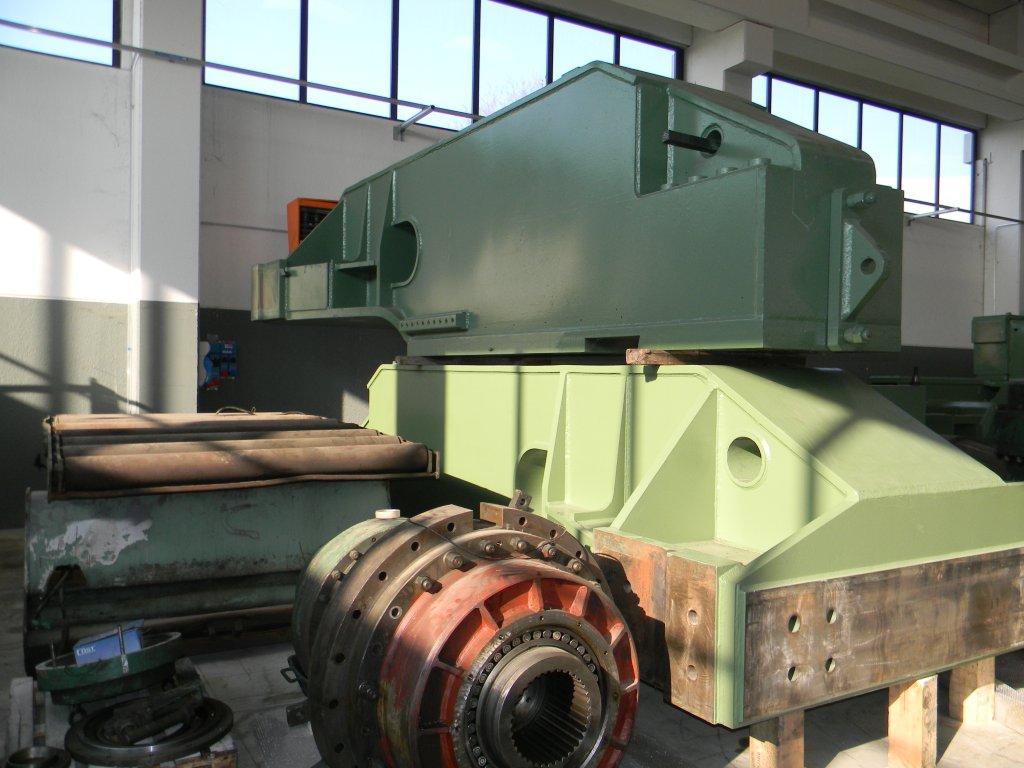

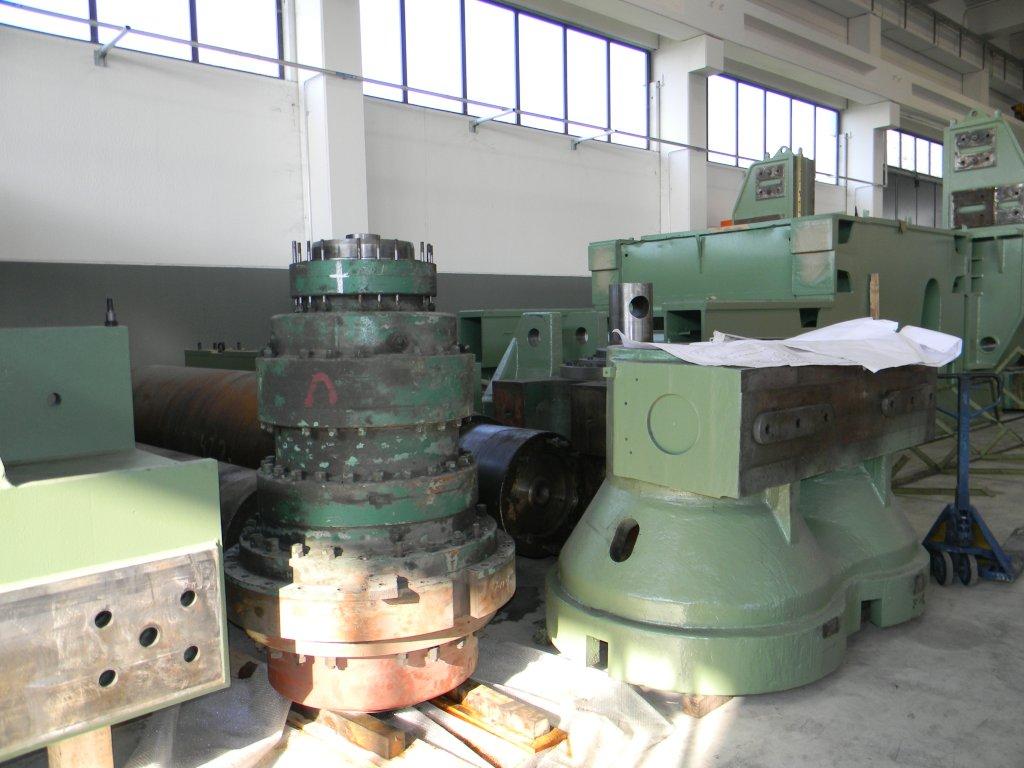

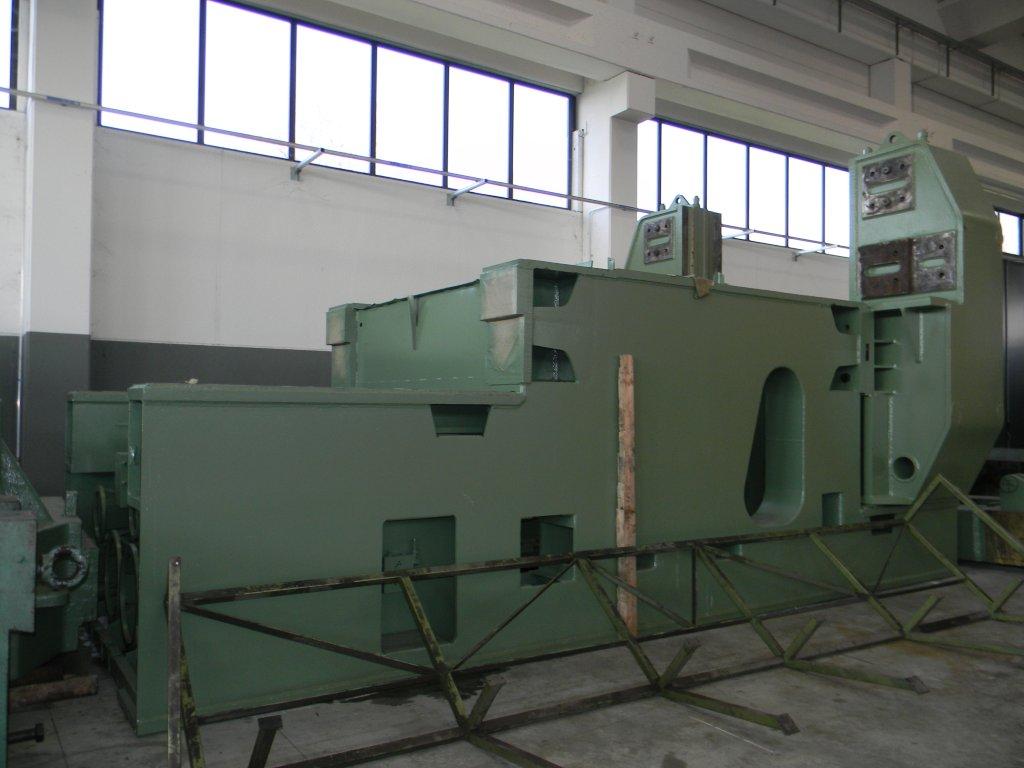

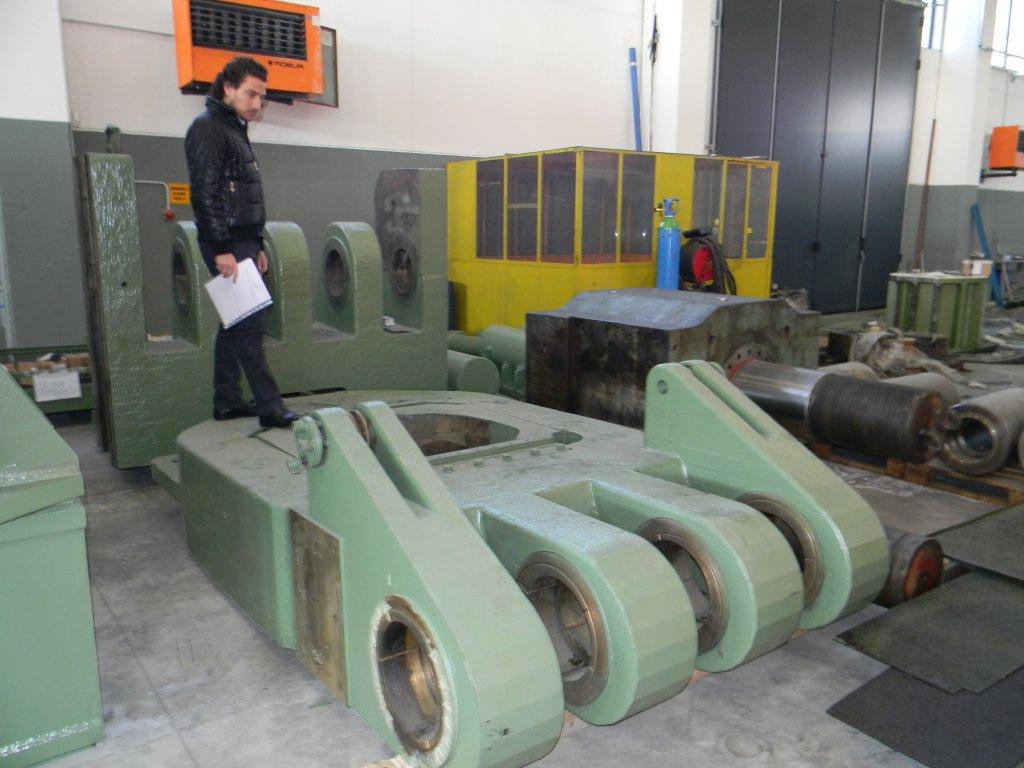

Immagini del prodotto:
Dati tecnici:
3-rulli VERRINA 4 / 120 Lunghezza max. tavola: 4080 mm Lunghezza lamiera max. : 4000 mm Diametro rullo superiore: 1100 mm Diametro rulli inferiori: 650 mm Dimensioni: Altezza totale: 7925 mm Lunghezza totale: 13700 mm Larghezza totale: 5200 mm Peso approssimativo: 380 ton. Completamente revisionata.
3-ROLLS HORIZONTAL HYDRAULIC BENDING ROLL VERRINA MODEL ČLS 95 X
4080 FOR COLD AND HOT BENDING
AND FOR THE PRODUCTION OF CYLINDRICAL AND CONICAL PARTS
Main features:
- Max table length
mm 4080 - Max useful length
mm 4000 - Upper roll Dia
mm 1100 - Max bending capacity (cold)
mm 4000x120 - Driven lower rolls, each one with nominal torque
kg/m 90.000 - Total nominal torque
kg/m 180.000 - Nominal speed for roller rotation
m/min 2-3-5 - Nominal speed for the upper roll movement upwards: min/max
mm/sec 3,5-5,5 - Nominal speed for the lower rolls horizontal movement:
min/max
mm/sec 5-8
- Max nominal load on the upper roll
t 2750 - Max nominal vertical load on the lower rolls
t 1970 - Max nominal horizontal load on lower rolls
t 770 - Installed power:
for rotation CV 400
for movement upwards CV 120
for horizontal movement CV 60
for release CV 25
for the motors of auxiliary circuits and lubrication CV 5,5
Total installed power CV 610,5 - Weight approx
380 Ton - Max overall dimensions
Total height mm 7925
Total length mm 13700
AMOUNT FOR THE REFURBISHED MACHINE € 1.190.000,00
CONDITIONS OF SALES:
Total width mm 5200
Delivery time : 30-45 days – if not sold
Delivery : EXW – Incoterms 2010
Payment terms : 100% Bank Transfer before shipment
Guarantee : 12 months
Validity of Quotation: if not sold
